Home / Products / Series / OCTO series / Climbing complex OCTO 7.1

Product code: OCT107-1

Climbing complex OCTO 7.1

  • 4 y
  • 2.29 m
  • 5.5 m
  • 11.25 m
  • 3.92 m
  • TUV Logo
+

Specifications-

Technical information

Safety area width9.47 m
Safety area length14.7 m
Width of structure5.5 m
Length of structure11.25 m
Height of structure3.92 m
Max. fall height2.29 m
Recommended age of children4+
For simultaneous use by several children1-25

Product consists of

Platforms6 pcs with a height 2 m
Platforms1 pcs with a height 2.15 m
Slides1 pcs with a height 2.15 m
Stainless-steel, HDPE plastic sides
Railings2 pcs with a height 2 m
Stainless steel
Climbing walls10 pcs
Climbing nets1 pcs
16 mm six-strand PES cover braided steel ropes
Slopes1 pcs
Fireman poles1 pcs
Galvanized and powder-coated steel
Play corners1 pcs
Plastic and wood
Posts23 pcs

Product description

The series was named after modern octagonal powder coated aluminium posts. The series is like a large city where everyone feels able to win through! The product range of the series of particular design meant for the young is expanding continually. The OCTO series acrylic glass panels accentuate the impression of high-rise glass buildings. In reality, the durable glasspanels are of the type known from hockey squares. The attractions survive even the biggest challenges. The OCTO series offers developing activities and physical effort for older children who ardently wish to try their hand. The selection includes big and grand megacomplexes, different climbing facilities, spinners, shakers, swing constructions etc. A new meeting place was born!

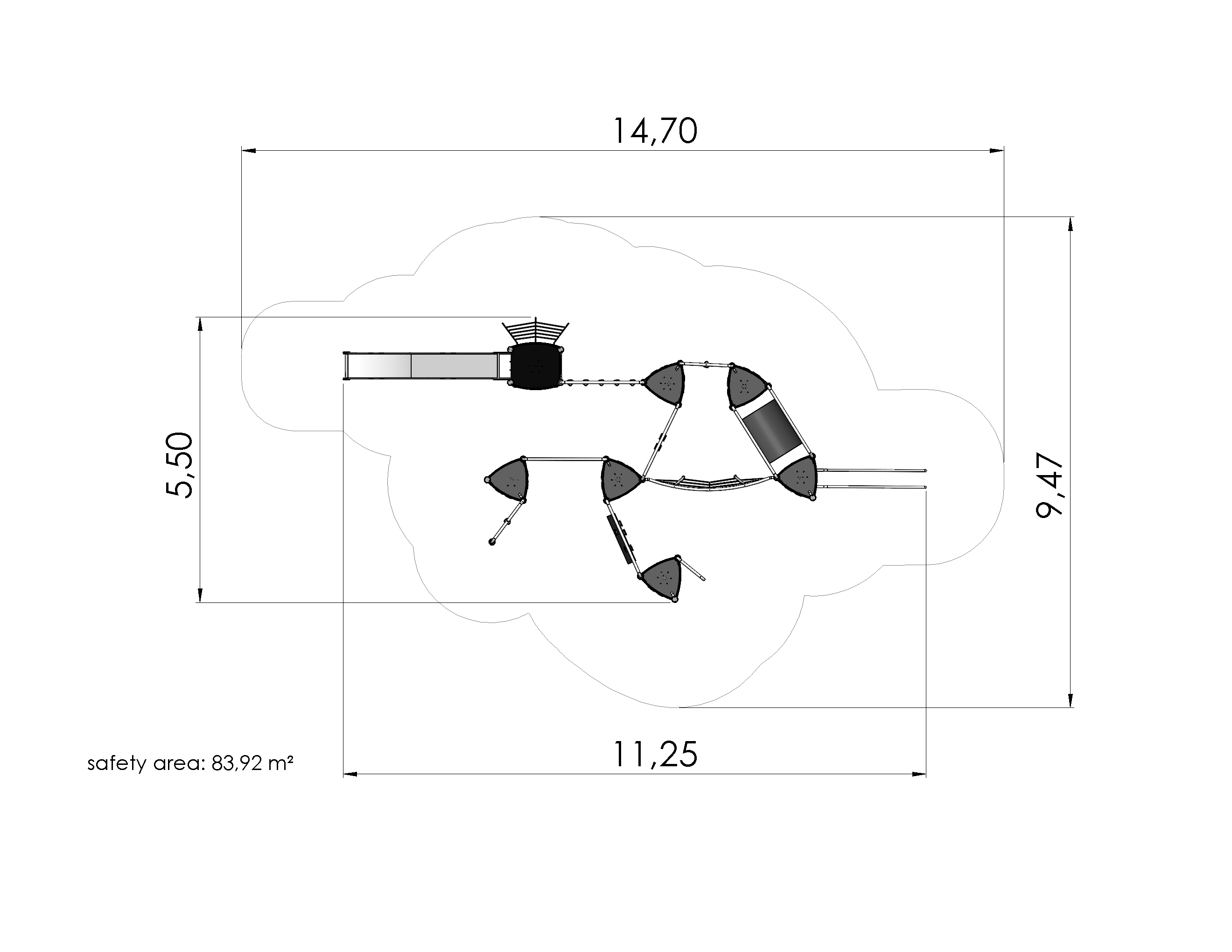

Safety area

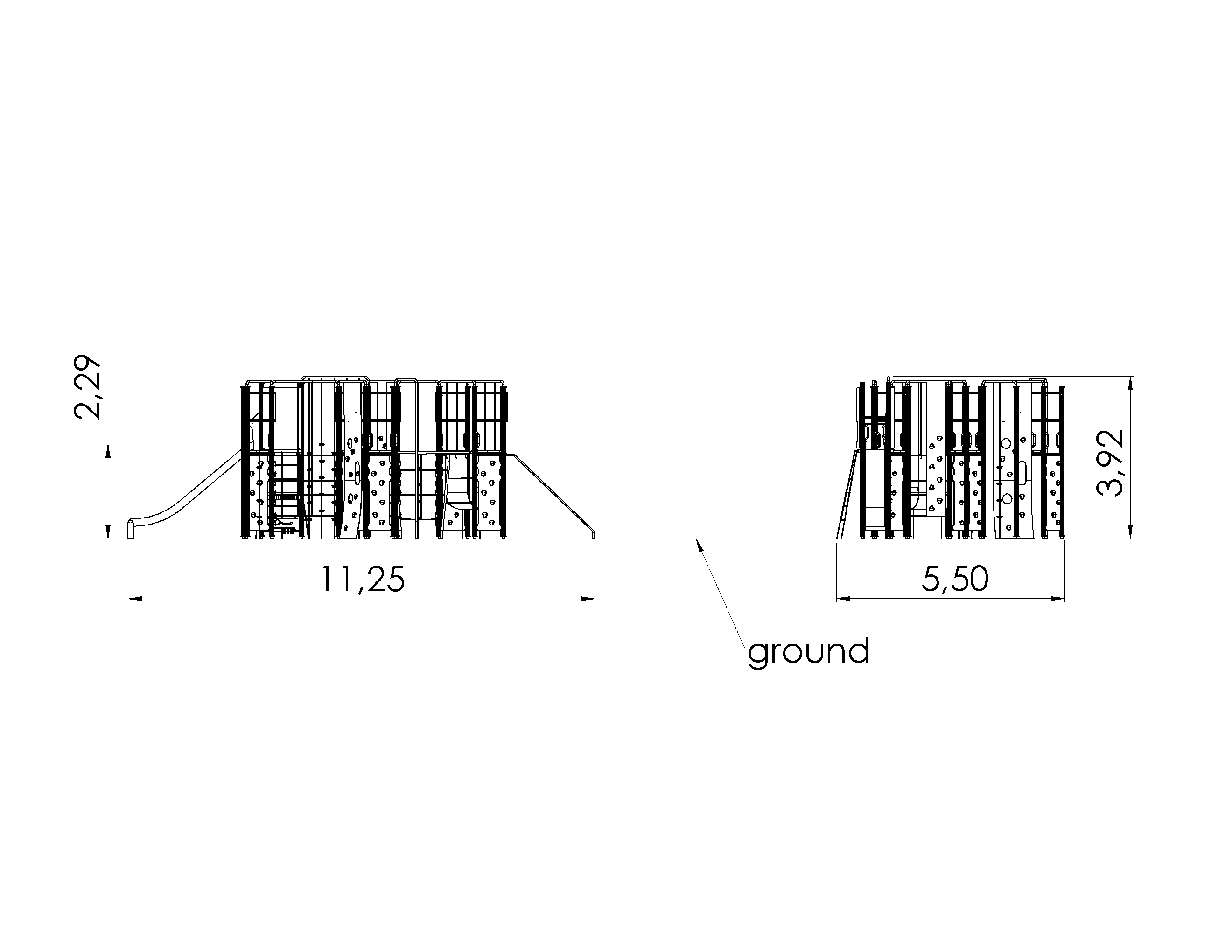

Side view

Downloads+

Material+

Installation info+
