Home / Products / Series / ROBINIA / Combined climbing system with slide

Product code:

Combined climbing system with slide

  • 1 y
  • 2.13 m
  • 6.86 m
  • 8.13 m
  • 3.85 m
  • TUV Logo
+

    Specifications-

    Technical information

    Safety area width5 m
    Safety area length8.41 m
    Width of structure6.86 m
    Length of structure8.13 m
    Height of structure3.85 m
    Max. fall height2.13 m
    Recommended age of children1+
    For simultaneous use by several children1-6

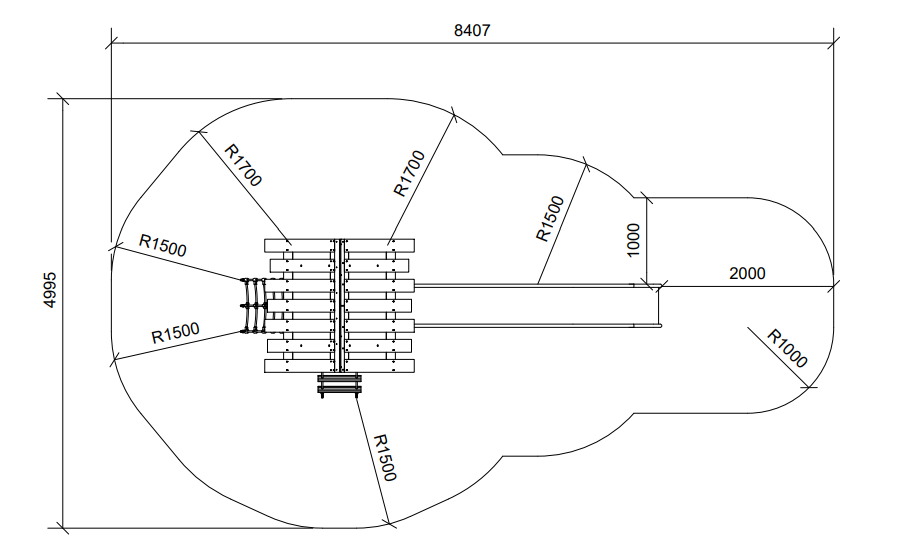

    Safety area

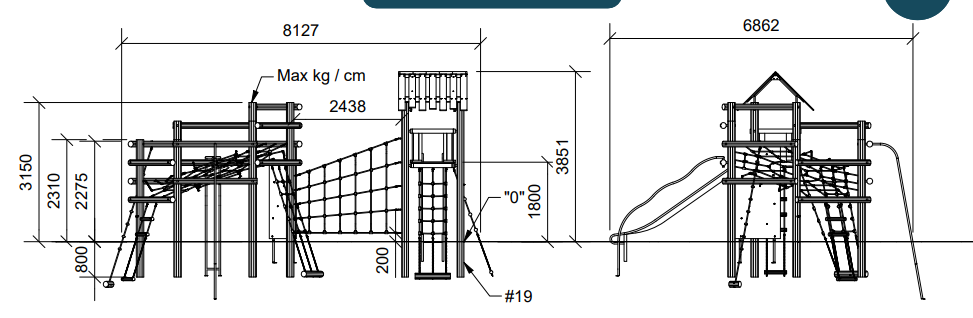

    Side view

    Downloads+

    Installation info+
