Home / Products / Sport and fitness / PARKOUR / PARKOUR M for kids (low)

Product code:

PARKOUR M for kids (low)

  • 6 y
  • 1.55 m
  • 7.1 m
  • 7.86 m
  • 1.55 m
  • TUV Logo
+

    Specifications-

    Technical information

    Safety area width10.89 m
    Safety area length10.14 m
    Width of structure7.1 m
    Length of structure7.86 m
    Height of structure1.55 m
    Max. fall height1.55 m
    Recommended age of children6+

    Product description

    The wall elements of parkour structures are made of sustainable cross-laminated timber (CLT) to ensure high stability and durability despite constantly changing atmospheric humidity. A four-stage treatment process has been employed to make the wood weatherproof.
    The top edges of wall elements are covered with rubber coated anti-slip plastic which comes in two colour options: grey or red. Horizontal pipes are made of stainless steel and the vertical posts of hot-dip galvanized and powder coated steel. The structure is meant to be fixed on surface (e.g. 150mm reinforced concrete slab foundation). Ground fixings are made of hot-dip galvanized metal.
    Product is designed and produced in conformity with EN 16899:2018-07.

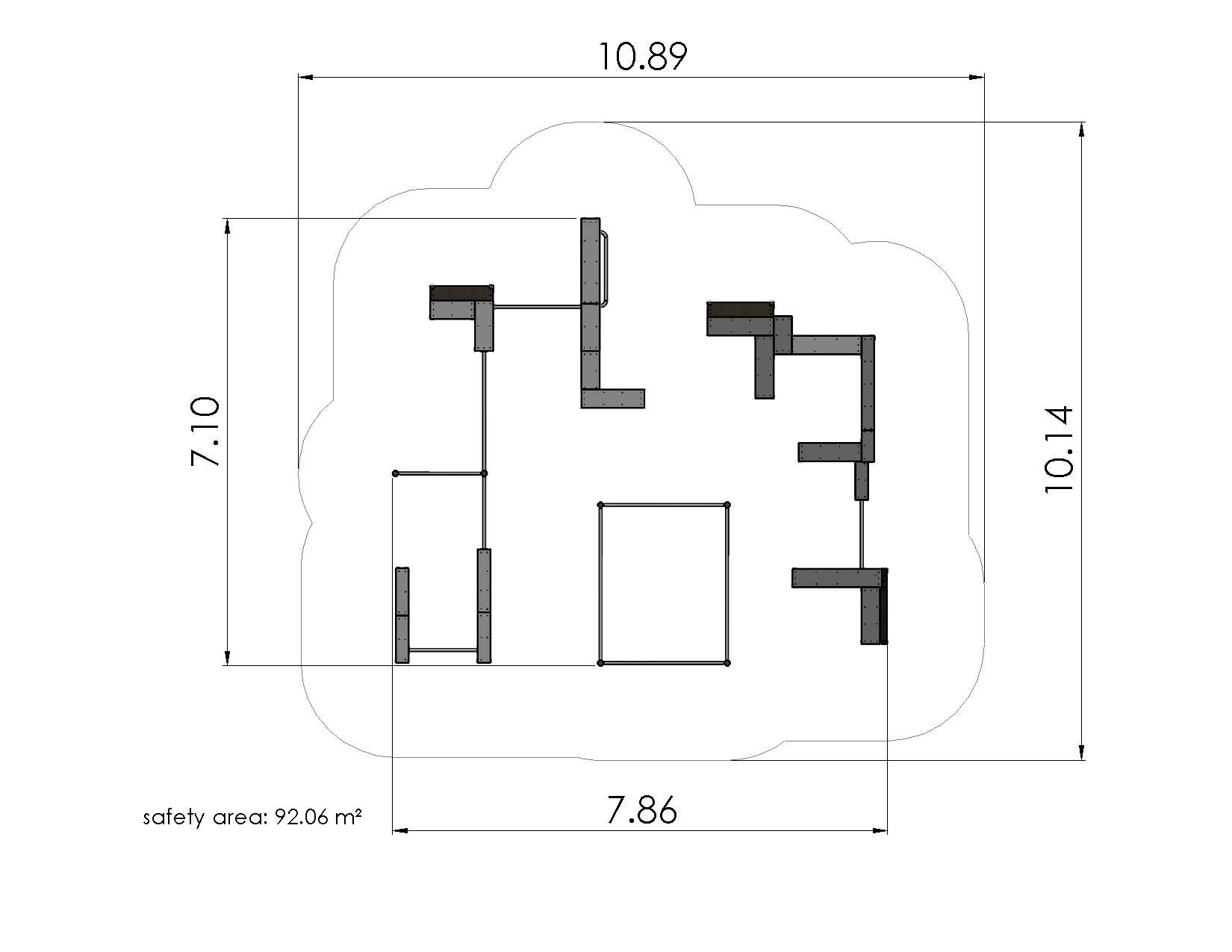

    Safety area

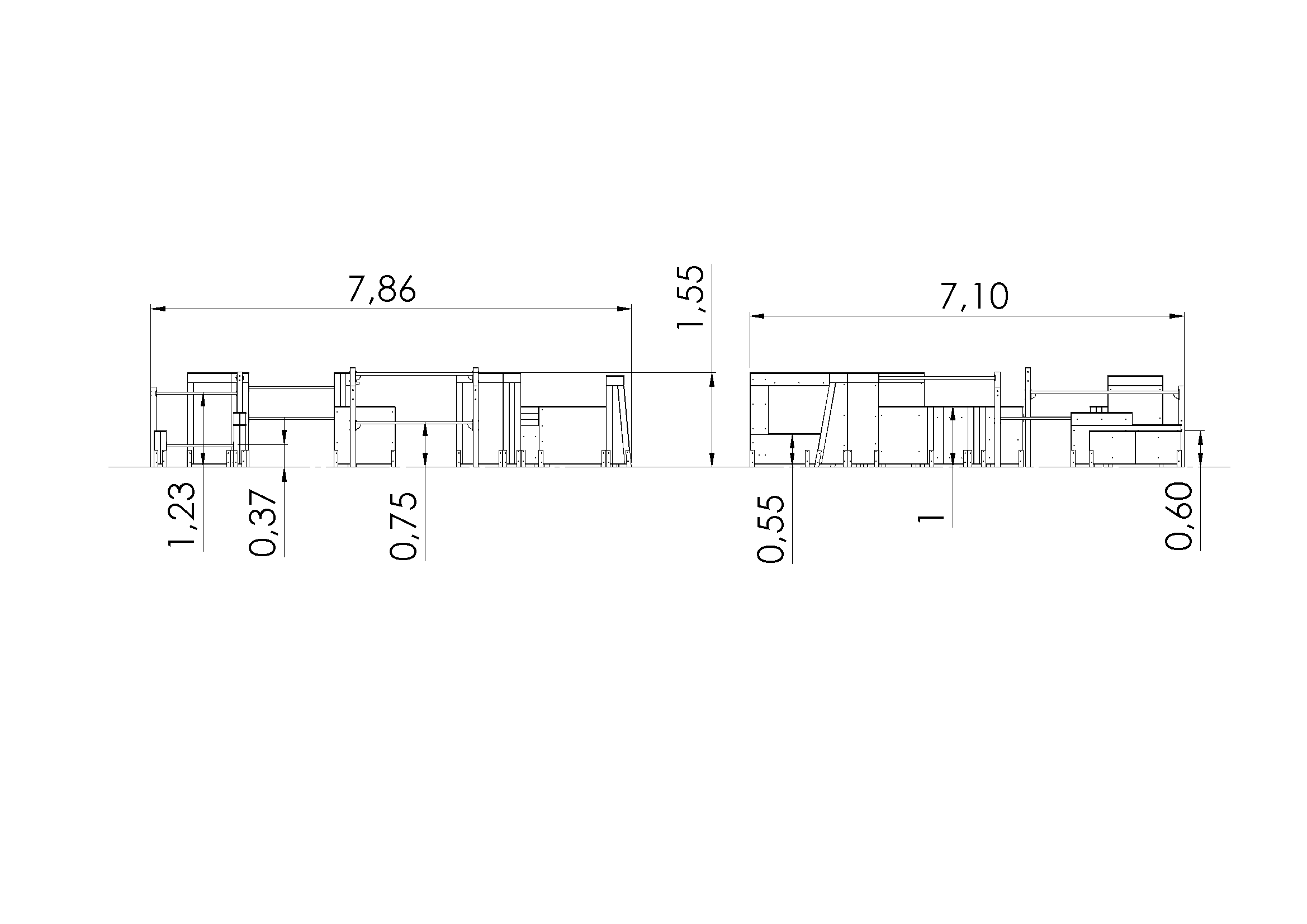

    Side view

    Downloads+

    Material+

    Installation info+
