Home / Products / Playgrounds / Spring swings and see-saws / Spring swing LADYBUG-2

Product code:

Spring swing LADYBUG-2

  • 2 y
  • 0.53 m
  • 0.32 m
  • 1.36 m
  • 1.06 m
  • TUV Logo
+

    Specifications-

    Technical information

    Safety area width3.76 m
    Safety area length2.72 m
    Width of structure0.32 m
    Length of structure1.36 m
    Height of structure1.06 m
    Max. fall height0.53 m
    Recommended age of children2+

    Product consists of

    Springs1 pcs
    Grips for hands and/or feet8 pcs

    Product description

    LADYBUG-2 is a 2-seat spring swing. Swinging helps kids develop balance, improves their fitness and lets them have fun. Kids can swing either backwards-forwards or the other way around.
    Materials:
    The springs are made from galvanized and powder coated steel. Shape is made of 19 and 15 mm HDPE. Product's ground fixings are made of hot-dip galvanized metal and as standard solution it is concreted into the ground.

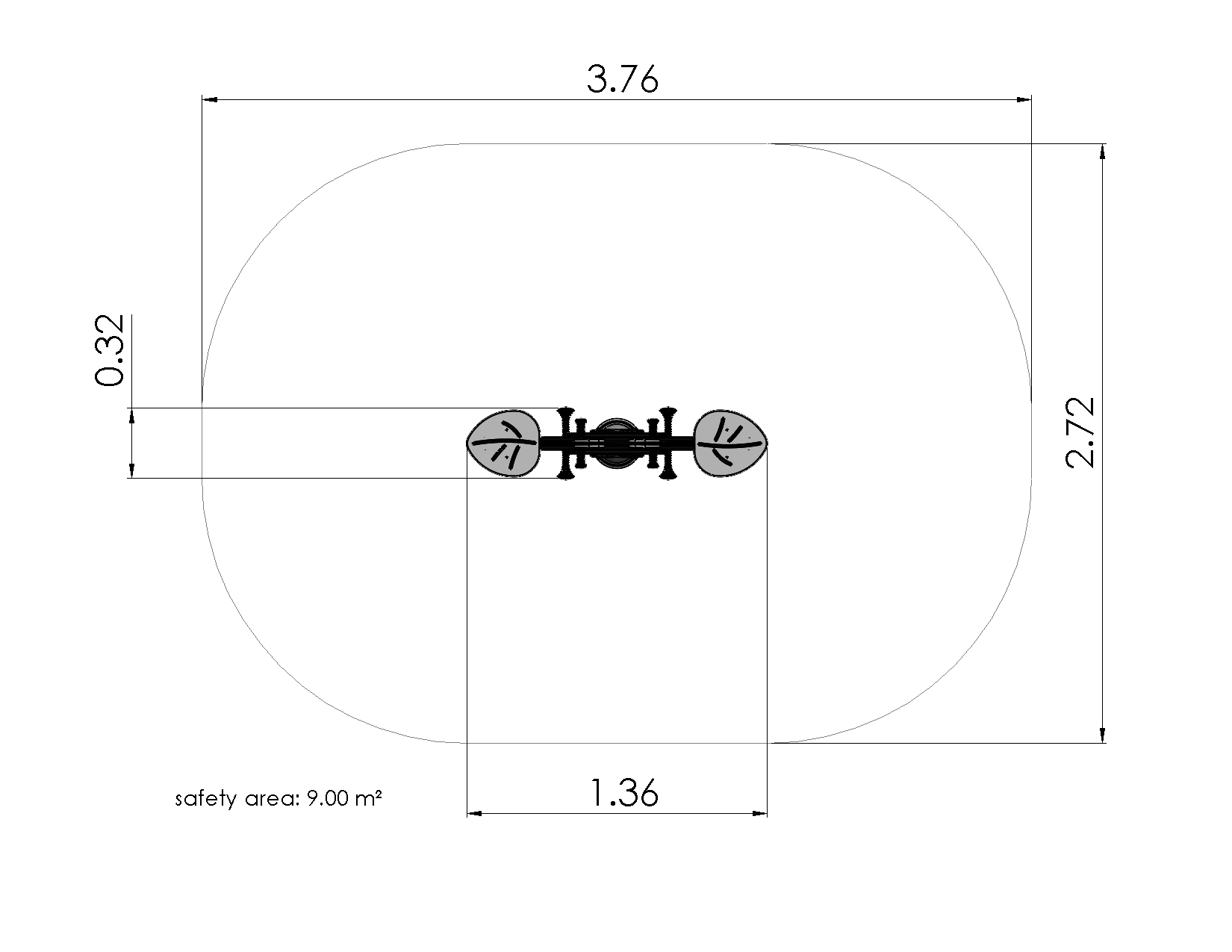

    Safety area

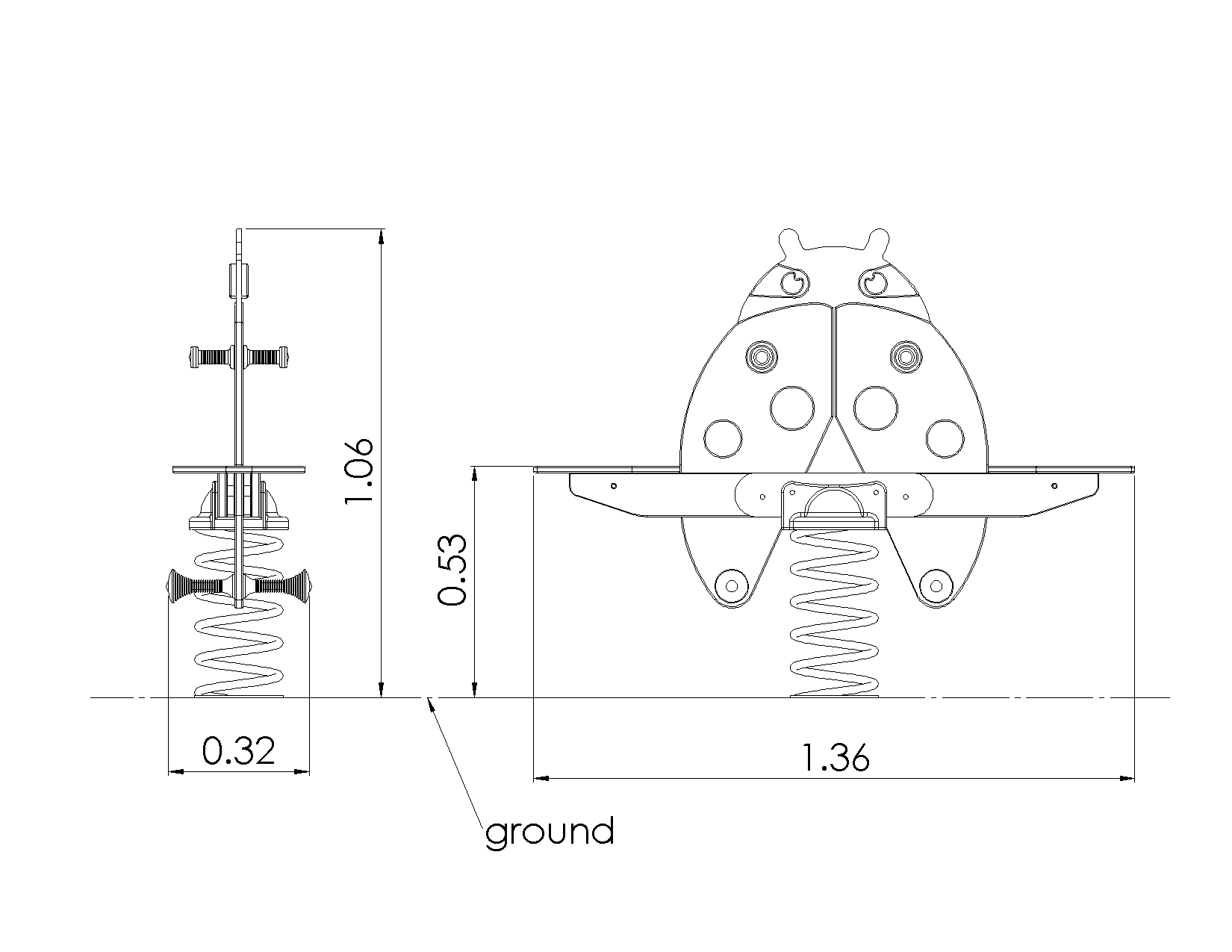

    Side view
