Home / Products / Series / TRIBUTE TO WILDLIFE / Spring swing RACCOON

Product code:

Spring swing RACCOON

  • 1 y
  • 0.46 m
  • 0.35 m
  • 1.03 m
  • 0.8 m
  • TUV Logo
+

    Specifications-

    Technical information

    Safety area width2.75 m
    Safety area length3.24 m
    Width of structure0.35 m
    Length of structure1.03 m
    Height of structure0.8 m
    Max. fall height0.46 m
    Recommended age of children1+
    For simultaneous use by several children1

    Product consists of

    Springs1 pcs
    Grips for hands and/or feet2 pcs

    Product description

    RACCOON is a 1-seat spring swing shaped like a raccoon. Swinging helps kids develop balance, improves their fitness and lets them have fun. Kids can swing either backwards-forwards or the other way around. The swing is equipped with handles and leg supports.
    The springs are made from galvanized and powder coated steel. Animal shape is made of 15 and 19 mm HDPE. Product’s ground fixings are made of hot-dip galvanized metal and as standard solution it is concreted into the ground.

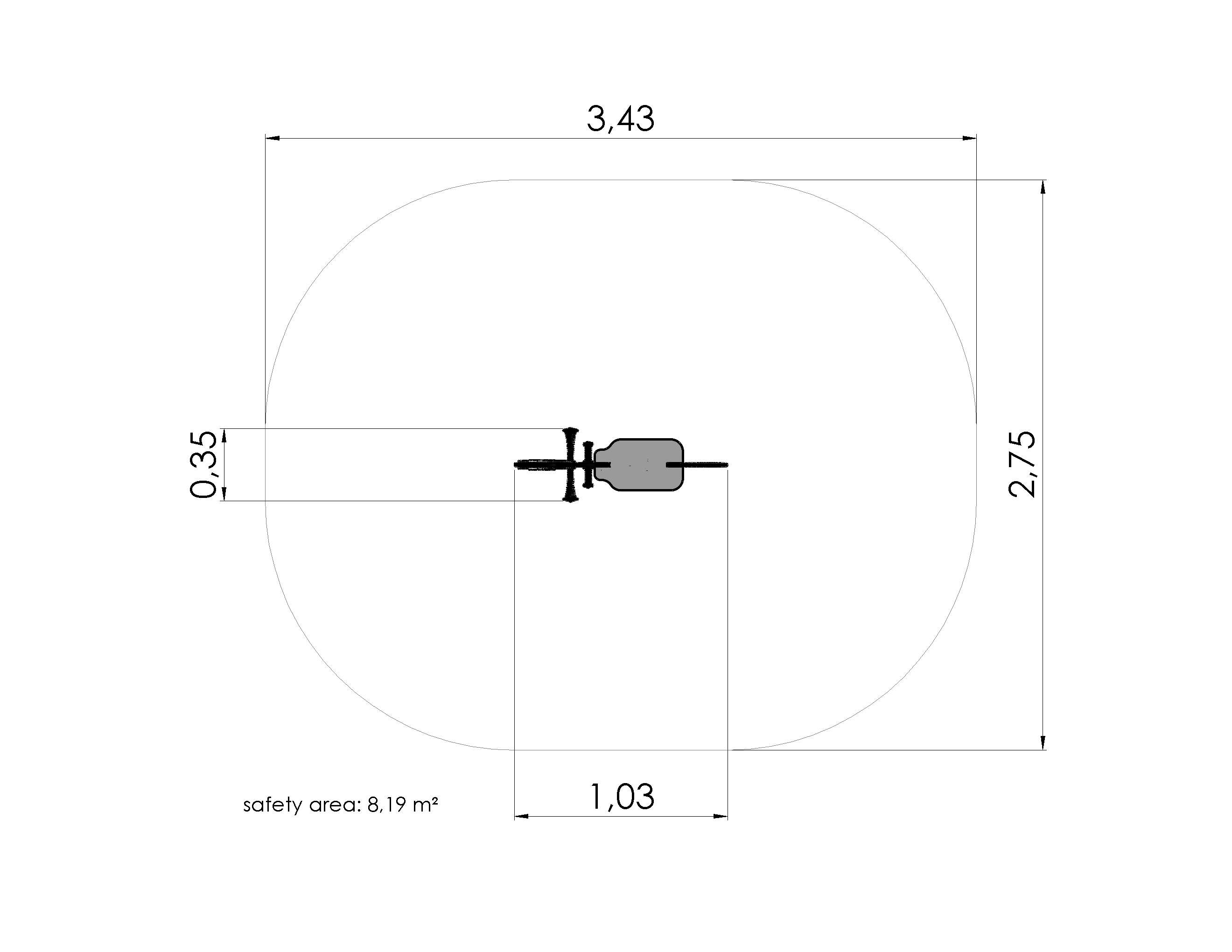

    Safety area

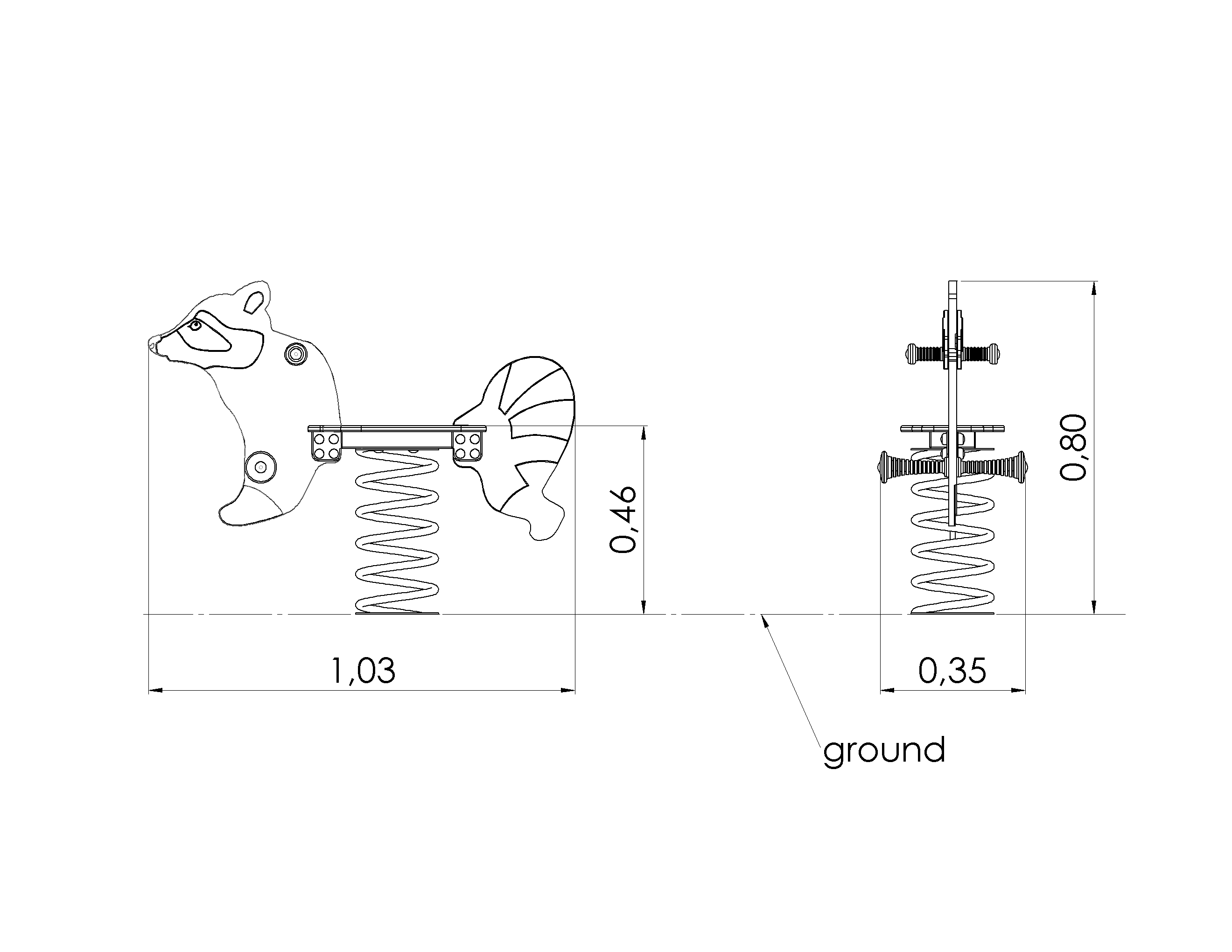

    Side view

    Downloads+

    Material+

    Installation info+
