Home / Products / Series / AMAZON series / AMAZON 5

Product code:

AMAZON 5

  • 4 y
  • 2 m
  • 2.26 m
  • 6.02 m
  • 3 m
  • TUV Logo
+

    Specifications-

    Technical information

    Safety area width5.92 m
    Safety area length9.86 m
    Width of structure2.26 m
    Length of structure6.02 m
    Height of structure3 m
    Max. fall height2 m
    The product needs a safety surface
    Recommended age of children4+

    Product consists of

    Tunnel slides1 pcs with a height 1.95 m
    Plastic
    Climbing walls1 pcs
    Climbing nets4 pcs
    16 mm six-strand PES cover braided steel ropes
    Posts4 pcs

    Product description

    The unique AMAZON climbing frame is made of durable laminated timber and it has been awarded the relevant quality certificates. Posts of laminated timber decorated with different ornaments are joined together using the innovative mortise joint. The cross-section of the posts is 100mm x 236mm and the nets between them are made of extremely durable 16mm steel rope designed for climbing which is coated with polyester and features plastic joints. This functional climbing frame offers various climbing, balancing and crawling opportunities. The laminated and painted timber posts are concreted to the ground using hot-dipped galvanized metal fittings.

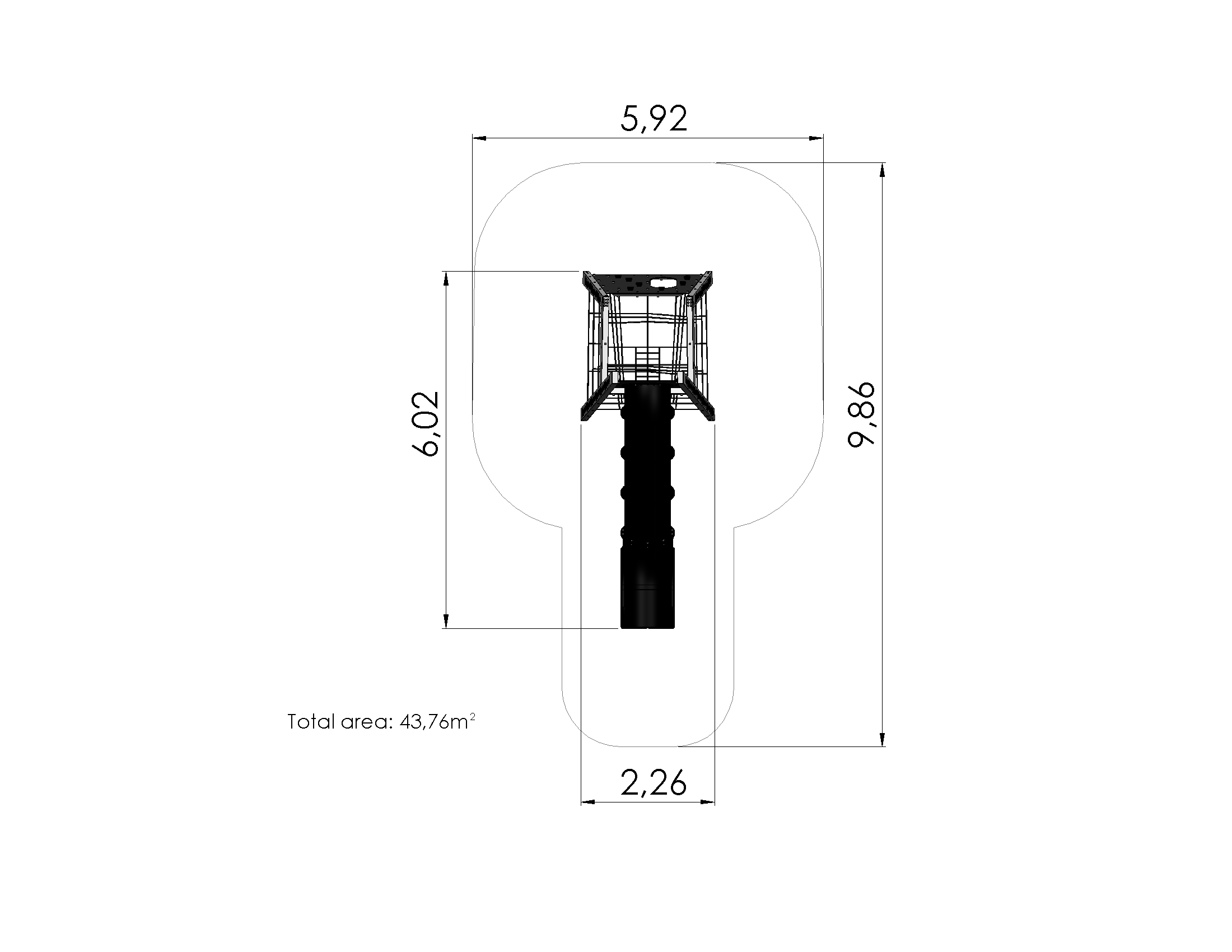

    Safety area

    Side view
