Home / Products / Series / AMAZON series / AMAZON

Product code:

AMAZON

  • 4 y
  • 2 m
  • 5.49 m
  • 6.18 m
  • 2 m
  • TUV Logo
+

    Specifications-

    Technical information

    Safety area width9.85 m
    Safety area length9.16 m

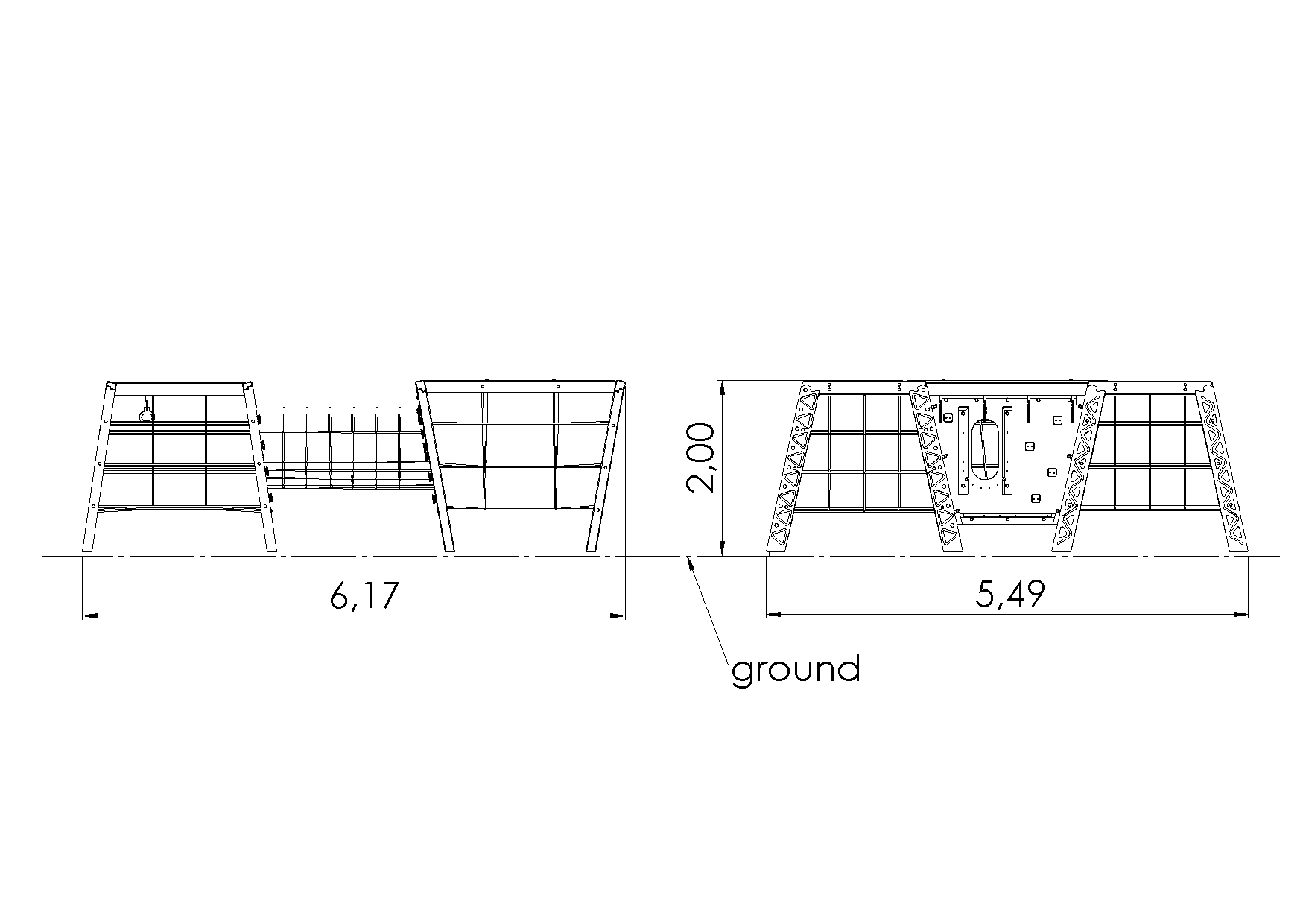

    Width of structure5.49 m
    Length of structure6.18 m
    Height of structure2 m
    Max. fall height2 m
    The product needs a safety surface
    Recommended age of children4+
    For simultaneous use by several children6-12

    Product description

    The unique AMAZON climbing frame is made of durable laminated timber and it has been awarded the relevant quality certificates. Posts of laminated timber decorated with different ornaments are joined together using the innovative mortise joint. The cross-section of the posts is 100mm x 236mm and the nets between them are made of extremely durable 16mm steel rope designed for climbing which is coated with polyester and features plastic joints. The climbing wall with climbing rocks is made of waterproof birch plywood. This functional climbing frame offers various climbing, balancing and crawling opportunities. Vertical and horizontal climbing nets connect the elements. The laminated and painted timber posts are concreted to the ground using hot-dipped galvanized metal fittings.

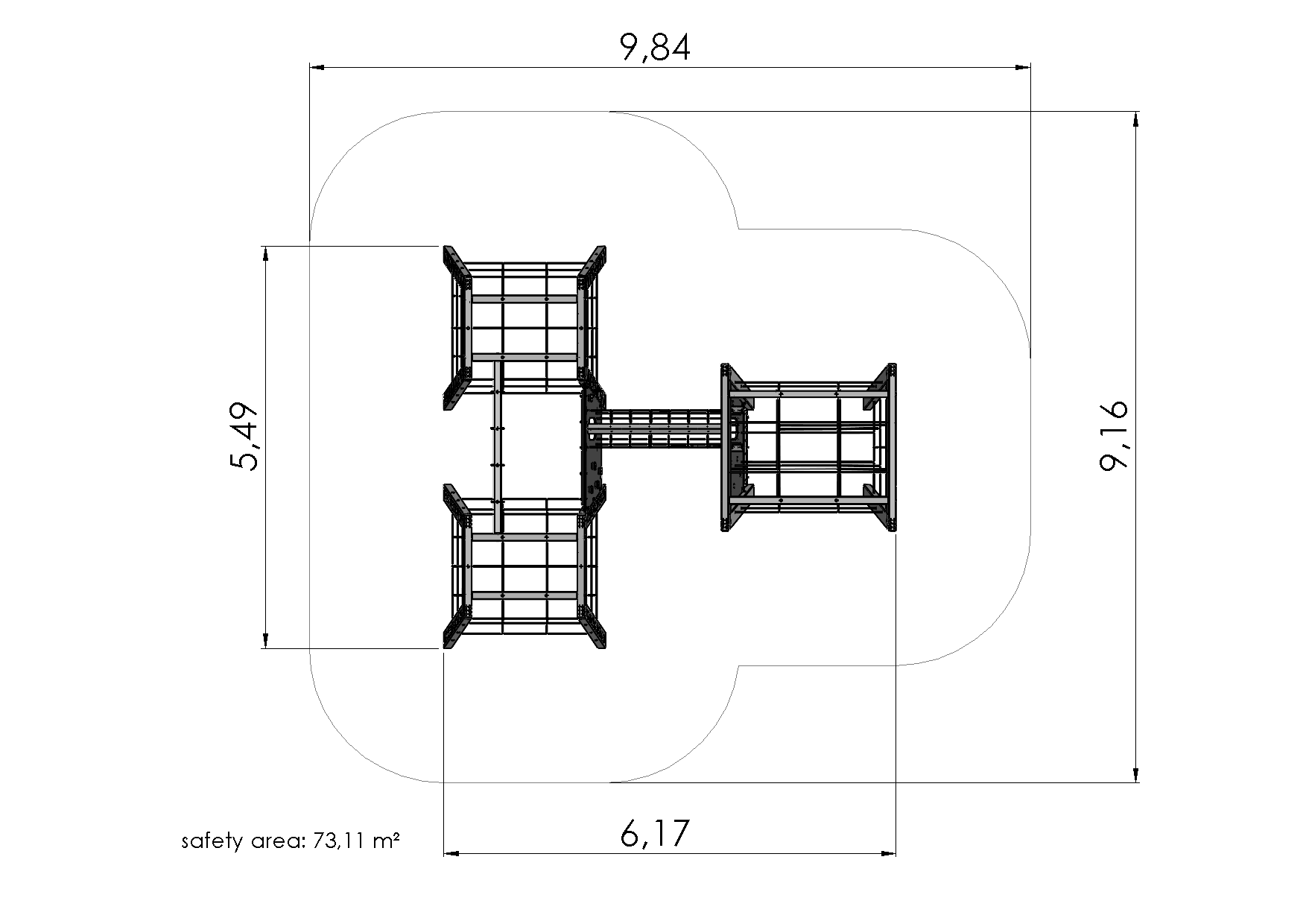

    Safety area

    Downloads+

    Material+

    Installation info+
