Home / Products / Sport and fitness / NINJA-track / Balance bridge

Product code:

Balance bridge

  • 3 y
  • 0.57 m
  • 1.05 m
  • 4.27 m
  • 1.36 m
  • TUV Logo

Material

+

    Specifications-

    Technical information

    Safety area width7.27 m
    Safety area length4.05 m
    Width of structure1.05 m
    Length of structure4.27 m
    Height of structure1.36 m
    Max. fall height0.57 m
    Recommended age of children3+

    Product consists of

    Slopes2 pcs
    Posts4 pcs
    Panels/Plates5 pcs

    Product description

    The Ninja course balance bridge is an exciting adventure trail element that tests the users' coordination and agility. Steps of various shapes and angles are attached to moving cables, creating an unstable surface that requires focus and constant adjustment of the centre of gravity from the person crossing it. Handrails on the sides of the bridge provide the necessary support while allowing users to develop confidence when moving at height.
    Materials:
    - 16 mm six-strand PES cover braided steel ropes;
    - Step plates are made of HDPE plastic with rubber coating.

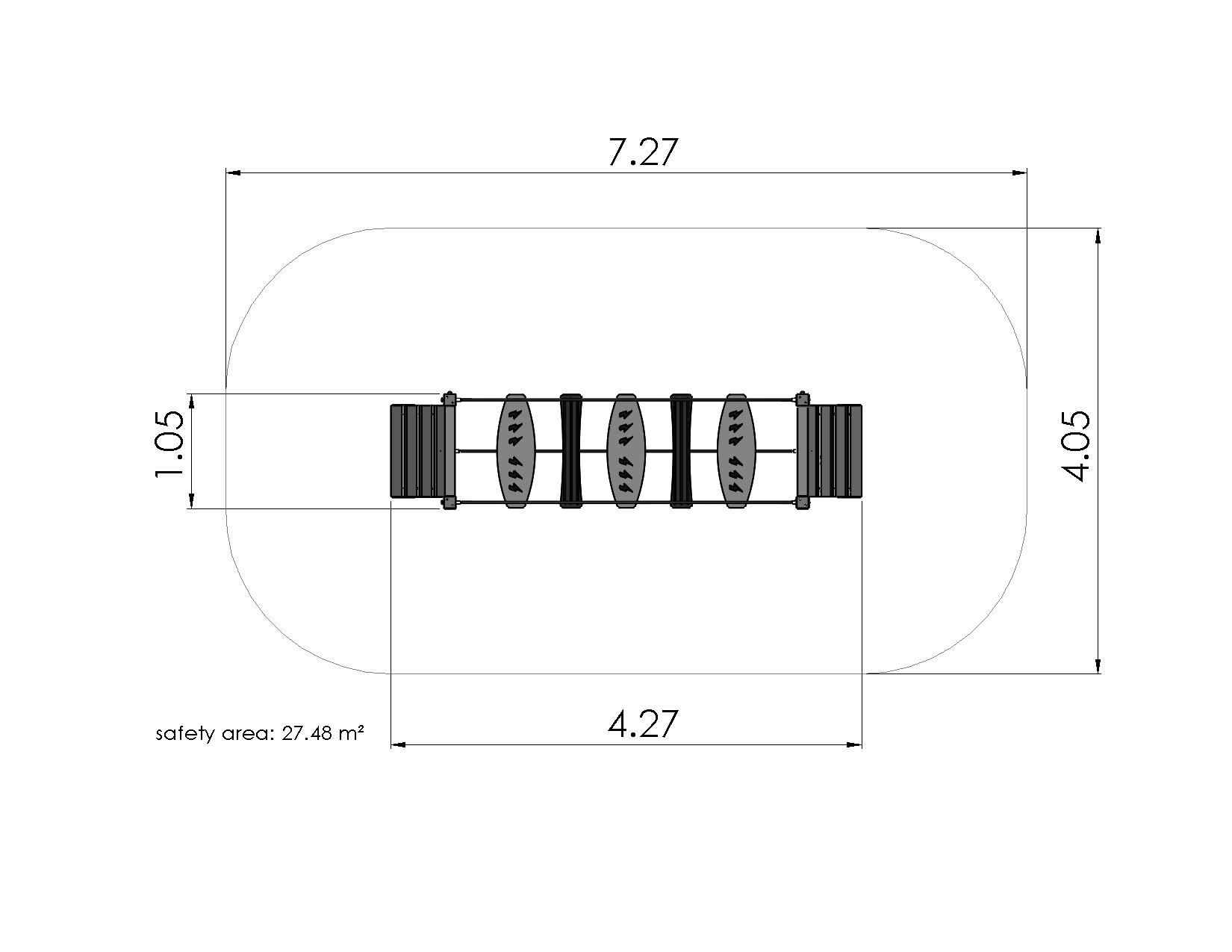

    Safety area

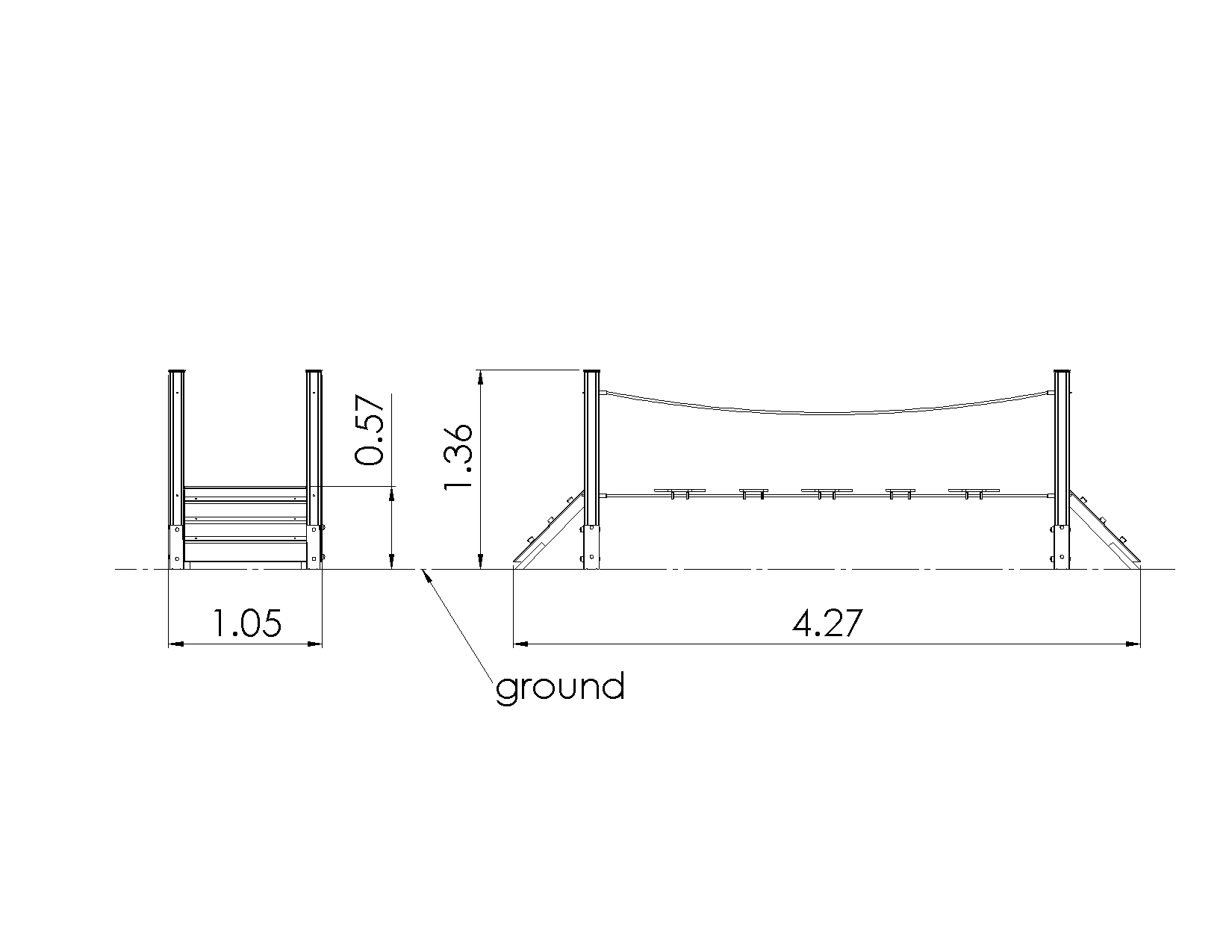

    Side view
