Product code:

Climbing course BJORN

  • 8 y
  • 1.95 m
  • 5.42 m
  • 19.95 m
  • 3.61 m
  • TUV Logo
+

    Specifications-

    Technical information

    Safety area width8.44 m
    Safety area length22.95 m
    Width of structure5.42 m
    Length of structure19.95 m
    Height of structure3.61 m
    Max. fall height1.95 m
    The product needs a safety surface
    Recommended age of children8+

    Product description

    This course is a combination of balance and height, where movement takes place on multiple levels. It encourages creativity, quick adaptation, and requires control.

    Elements on this track include:
    Inclined vertical climbing net;
    Climbing wall with grip cut-outs;
    2 rope suspension bridges;
    2 different suspended tracks with wooden steps;
    Curved wooden climbing ladder;
    Wooden ladder on springs;
    Sliding rails;
    Climbing pole with footholds;
    Inclined parkour wall.

    Materials:
    Climbing nets: 16 mm six-strand PES-covered braided steel rope,  pressed aluminium connectors;
    Posts: laminated wood (impregnated and painted);
    Platforms and panels: laminated wood (impregnated and painted), hot-dip galvanized and powder-coated steel;
    Beams for track and bridge structures: hot-dip galvanized and powder-coated square steel;
    Metal climbing elements: round stainless steel tubes;
    Climbing walls: laminated wood (impregnated and painted).

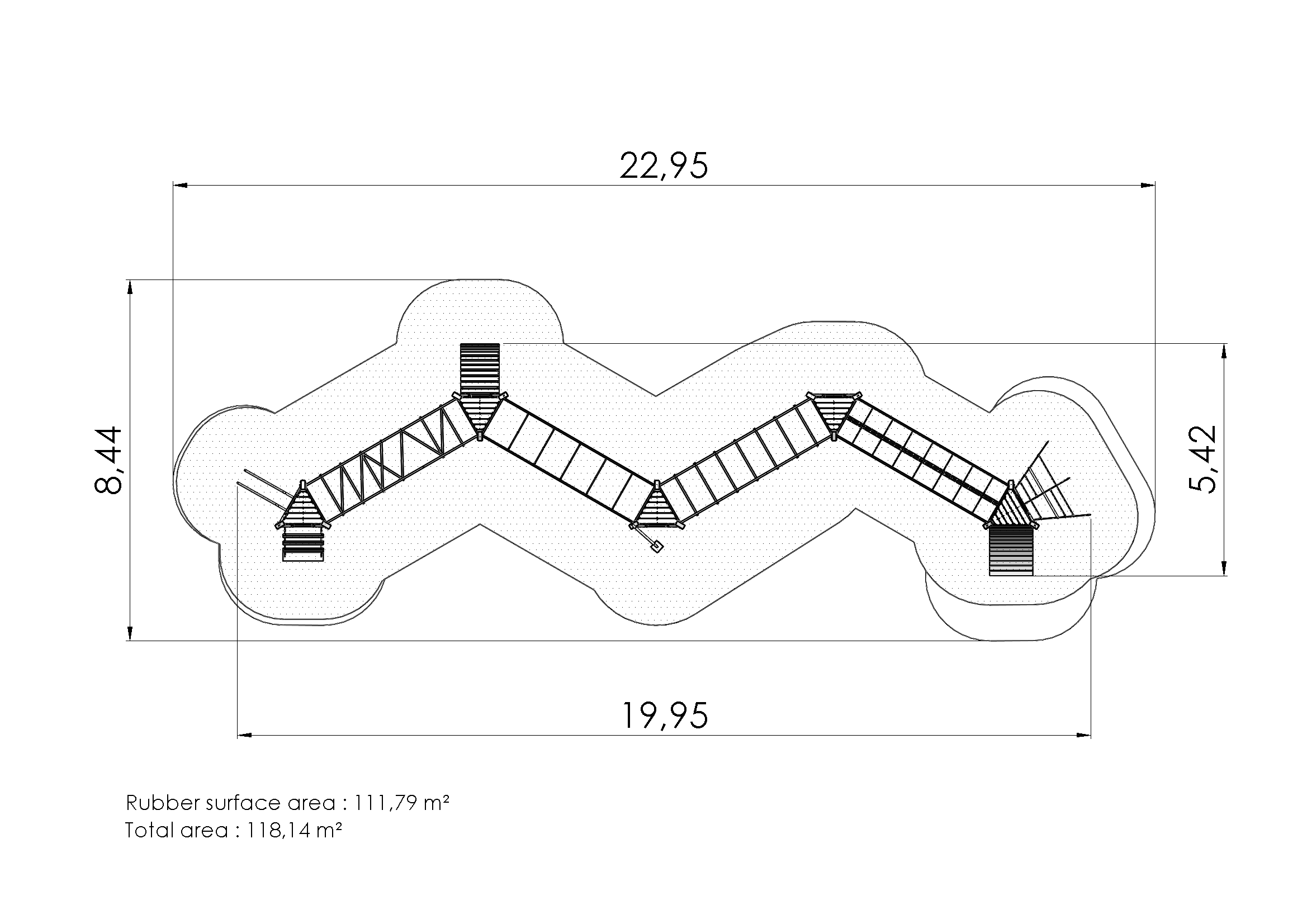

    Safety area

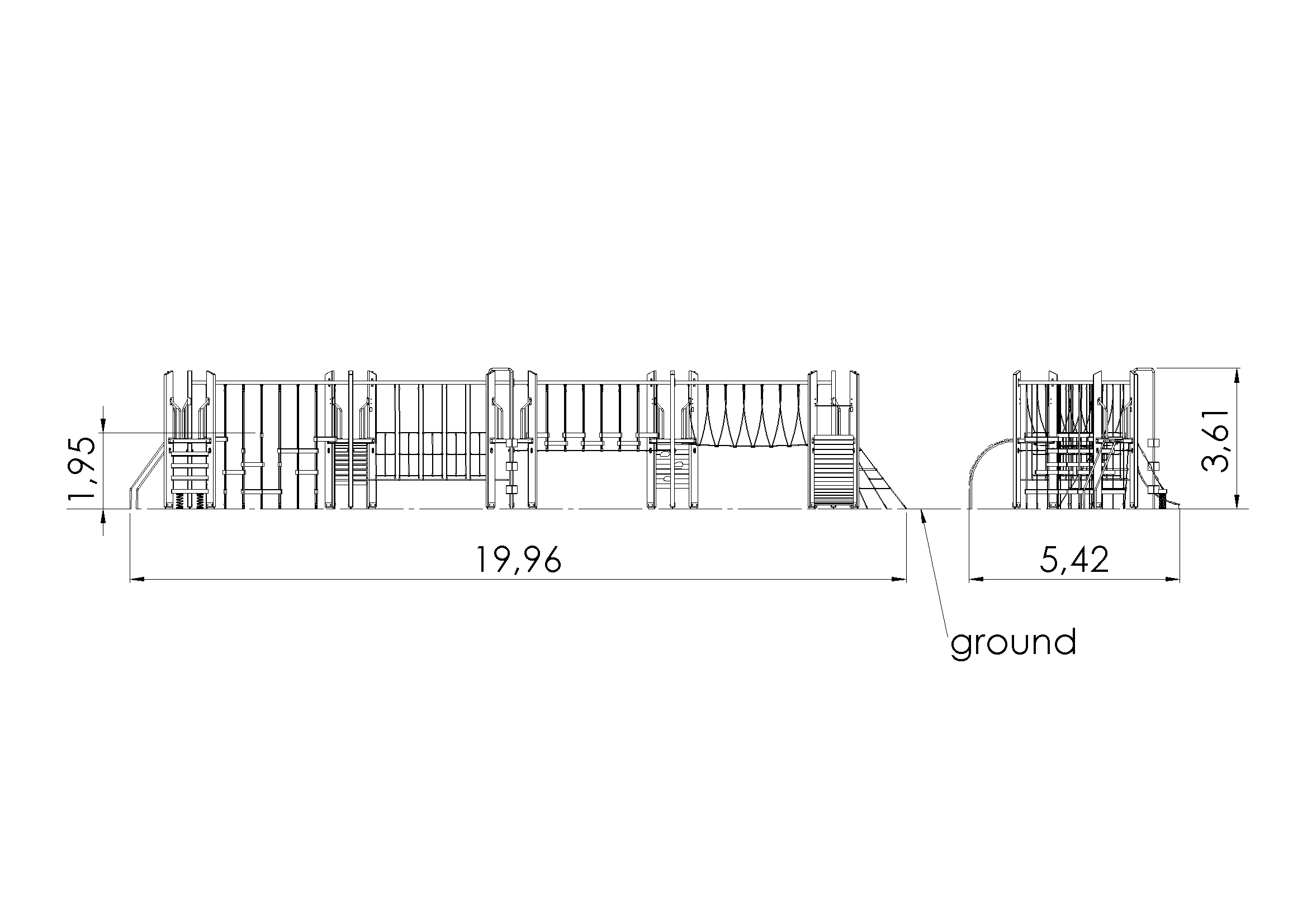

    Side view
