3D Planner
Home / Products / Series / NORDIC ROOTS / Climbing course ERIK

Product code:

Climbing course ERIK

  • 6 y
  • 1.95 m
  • 5.08 m
  • 11.68 m
  • 3.61 m
  • TUV Logo
+

    Specifications-

    Technical information

    Safety area width8.08 m
    Safety area length14.68 m
    Width of structure5.08 m
    Length of structure11.68 m
    Height of structure3.61 m
    Max. fall height1.95 m
    The product needs a safety surface
    Recommended age of children6+

    Product description

    The Erik course is suitable for young adventurers who enjoy fast-paced movement and overcoming challenges. The climbing course develops balance, grip, coordination, and endurance. The elements on this course include:

    Elements on this track include:
    Inclined vertical climbing net;
    Rope suspension bridges;
    Suspended tracks with wooden steps;
    Curved wooden climbing ladder;
    Wooden ladder on springs;
    Sliding rails;
    Climbing pole with footholds.

    Materials:
    Climbing nets: 16 mm six-strand PES-covered braided steel rope,  pressed aluminium connectors;
    Posts: laminated wood (impregnated and painted);
    Platforms and panels: laminated wood (impregnated and painted), hot-dip galvanised and powder-coated steel;
    Beams for track and bridge structures: hot-dip galvanised and powder-coated square steel;
    Metal climbing elements: round stainless steel tubes.

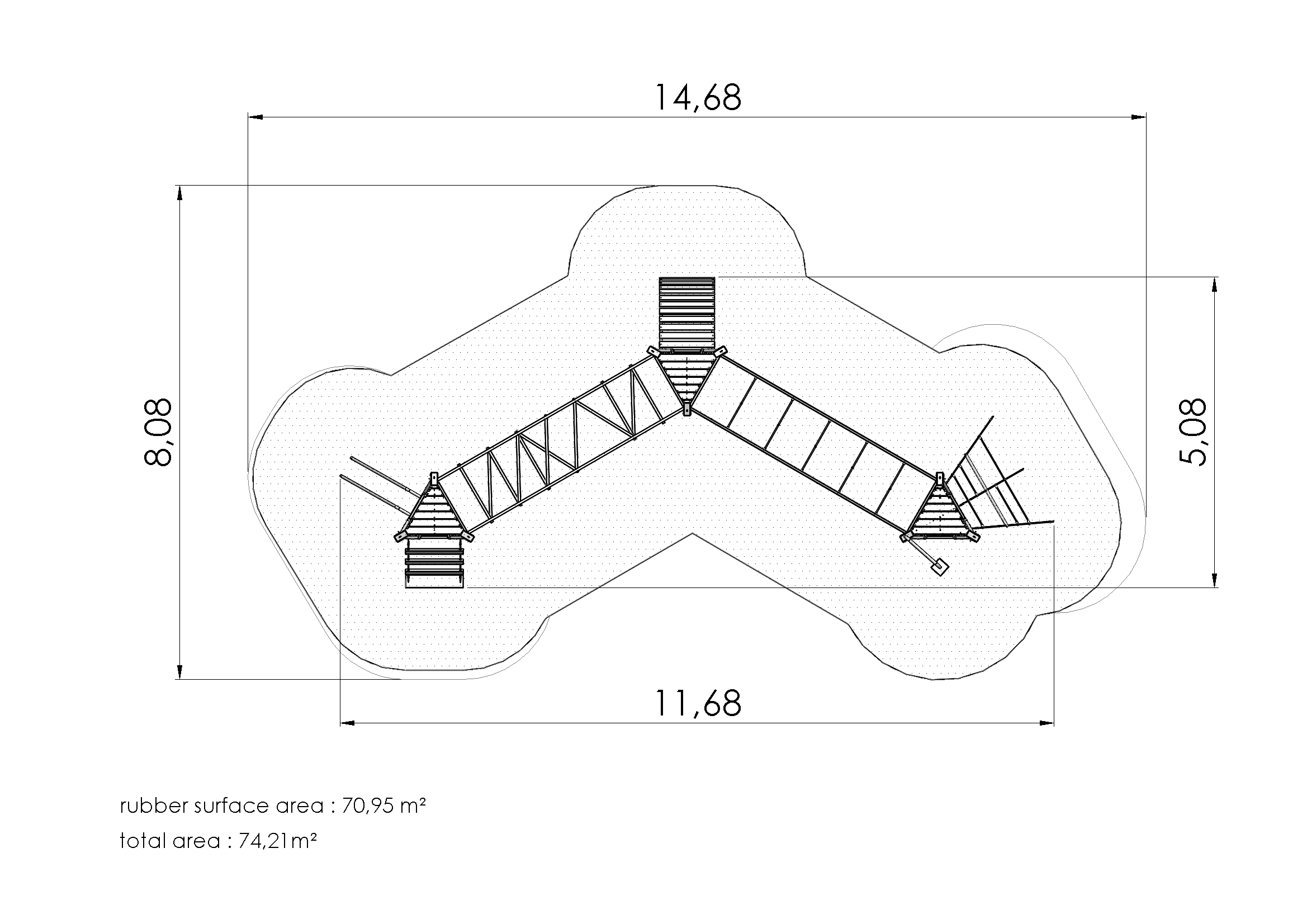

    Safety area

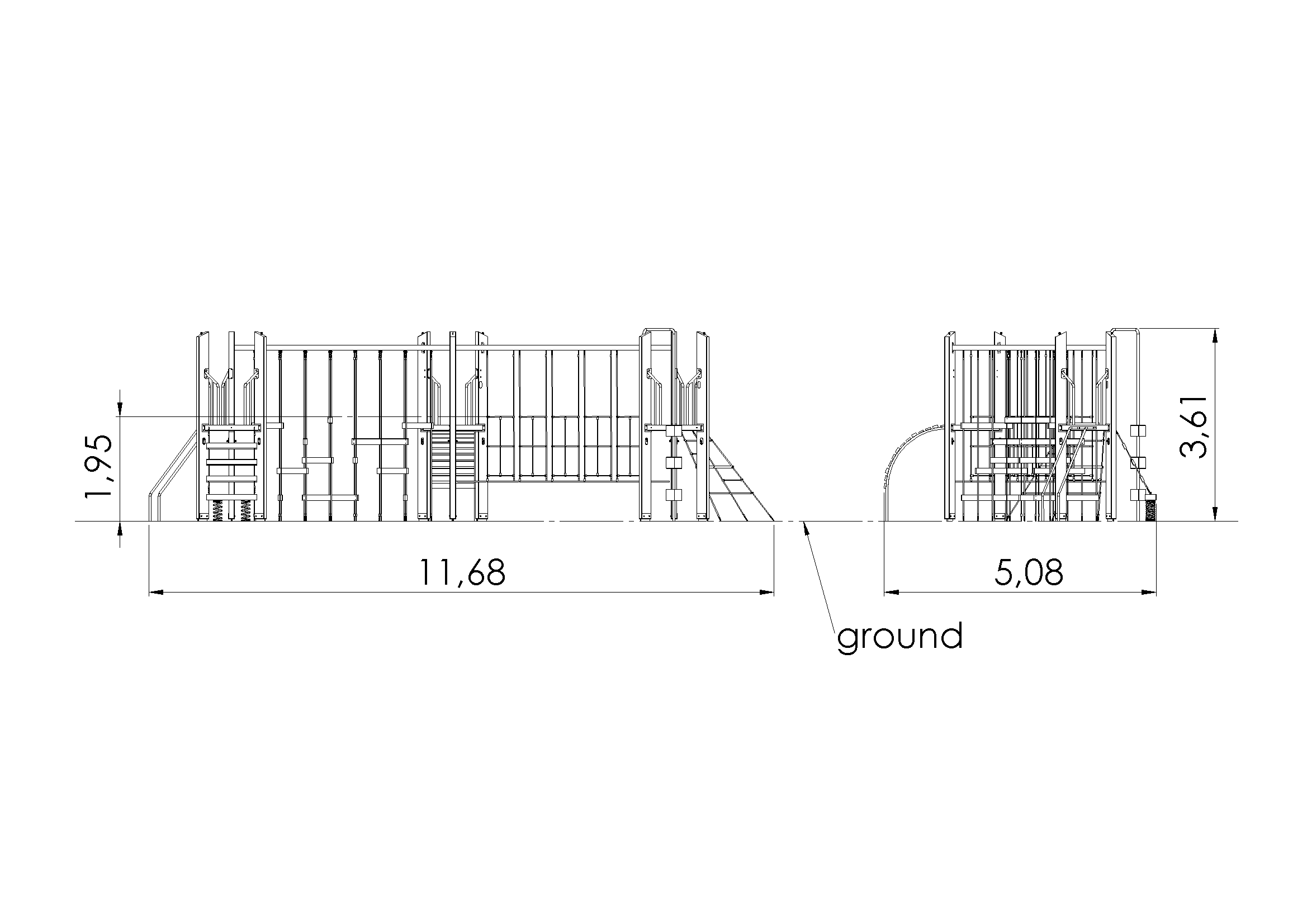

    Side view
