Home / Products / Playgrounds / Theme play / Mole's mine

Product code:

Mole's mine

  • 4 y
  • 1.93 m
  • 5.69 m
  • 6.83 m
  • 3.97 m
  • TUV Logo
+

    Specifications-

    Technical information

    Safety area width9.28 m
    Safety area length10.48 m
    Width of structure5.69 m
    Length of structure6.83 m
    Height of structure3.97 m
    Max. fall height1.93 m
    Recommended age of children4+
    For simultaneous use by several children1+

    Product consists of

    Roofs1 pcs
    Slides1 pcs with a height 2.15 m
    Tunnels3 pcs

    Product description

    Technical description:
    Underground pipes have been especially manufactured for underground use and to withstand heavy loads. Inside middle pipe is a climbing net construction
    Diameter of the main tube in the middle: 1,5m
    Diameter of side tubes: 0,8m
    Height of the slide: 2,15 m
    Material of platform and roof: transparent yellow plastic glass
    Material of steel posts and tubes: grey powder-coat
    Additional remarks: U-shape posts have to be concreted into the ground.

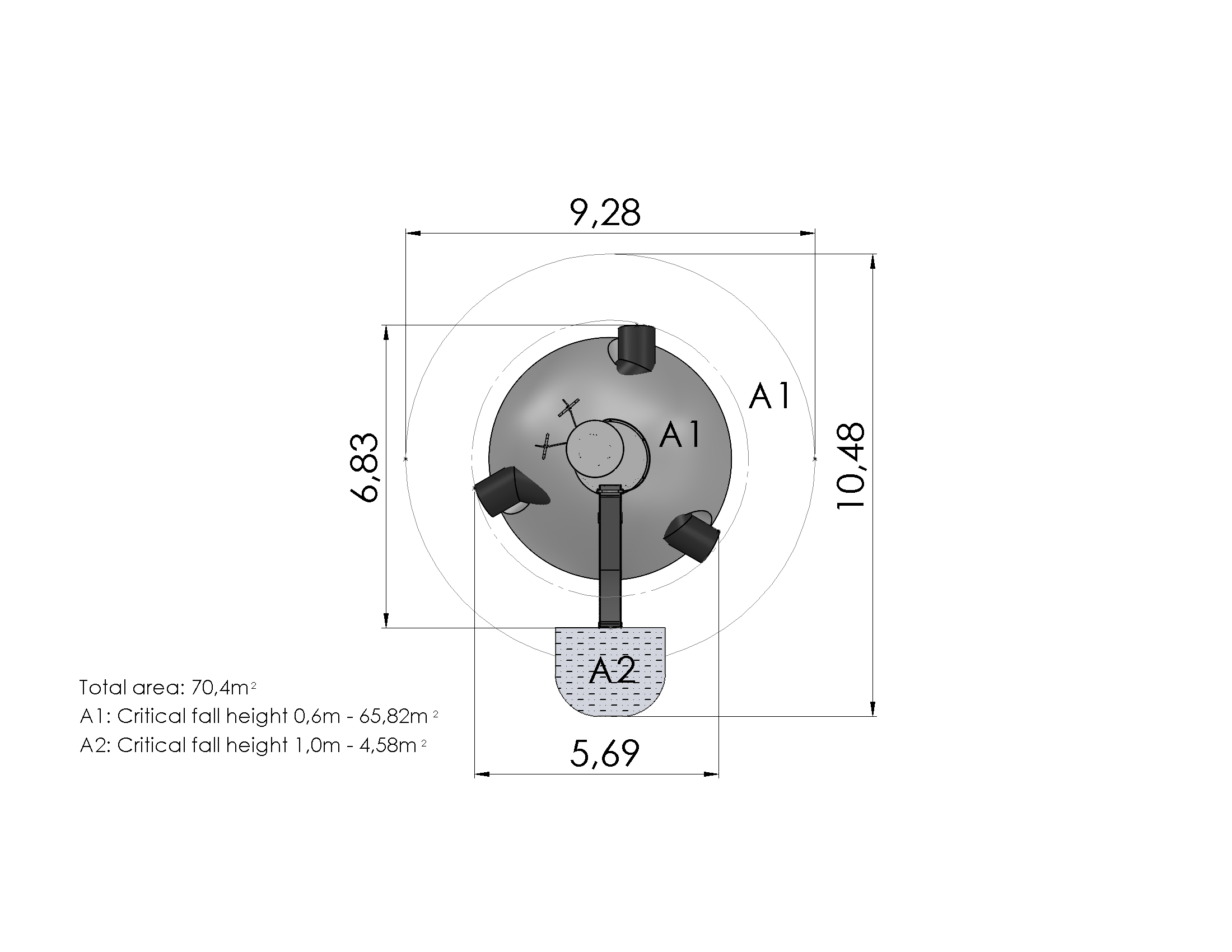

    Safety area

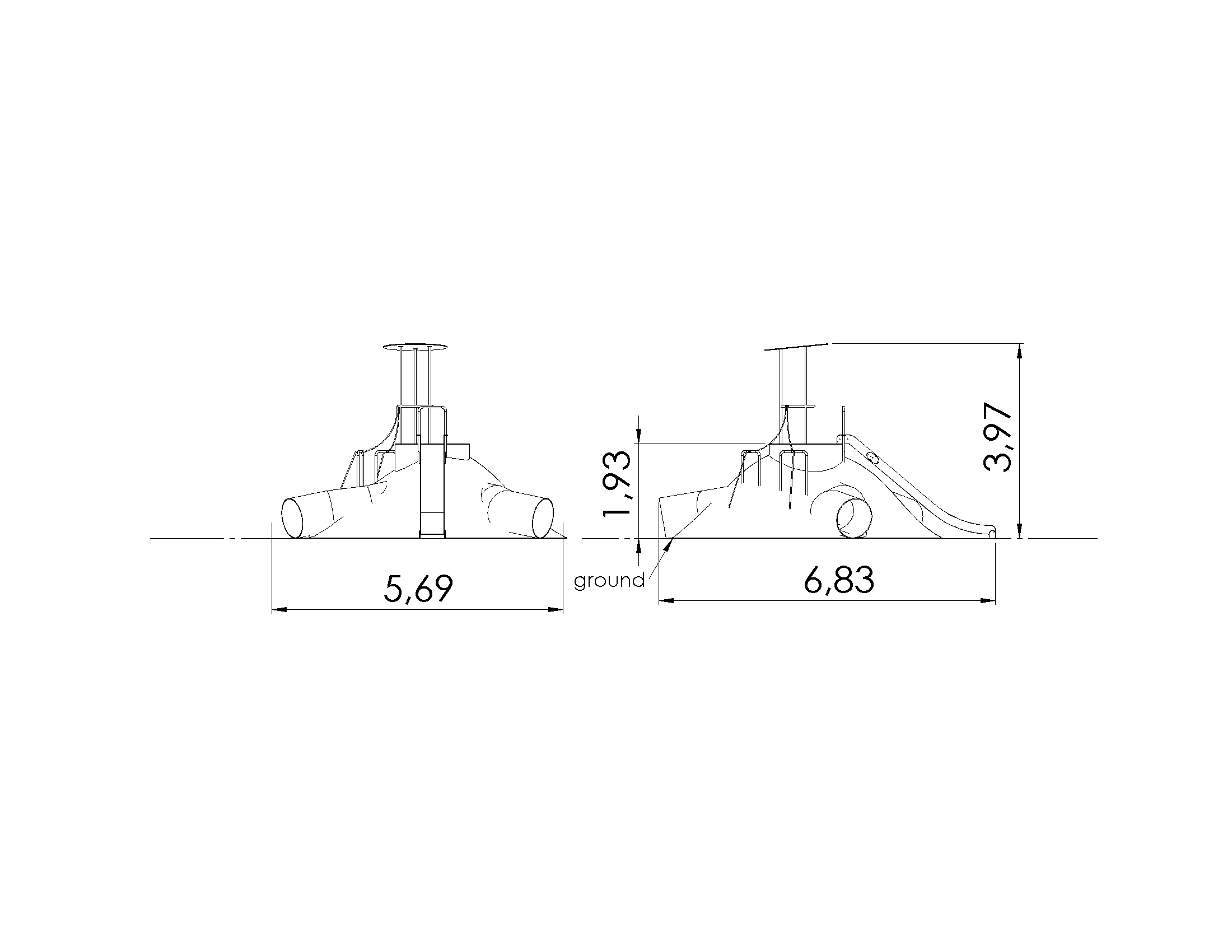

    Side view

    Downloads+

    Material+

    Installation info+
