Product code:

Play Centre RAUL

  • 4 y
  • 1.22 m
  • 4.32 m
  • 6.72 m
  • 3.31 m
  • TUV Logo

Colour options

Material

+

    Specifications-

    Technical information

    Safety area width7.32 m
    Safety area length10.22 m
    Width of structure4.32 m
    Length of structure6.72 m
    Height of structure3.31 m
    Max. fall height1.22 m
    Recommended age of children4+
    For simultaneous use by several children6-12

    Product consists of

    Platforms3 pcs with a height 1.2 m
    Platforms2 pcs with a height 0.95 m
    Roofs1 pcs
    Slides1 pcs with a height 1.2 m
    Slides2 pcs with a height 0.95 m
    Climbing walls1 pcs
    Climbing nets1 pcs
    Bridges3 pcs
    Tunnels1 pcs
    Fireman poles1 pcs
    Play corners2 pcs
    Activity panels4 pcs
    Posts18 pcs
    Panels/Plates2 pcs
    Tubes10 pcs

    Product description

    This play centre with five platforms offers a selection of diverse elements for many different activities. The centre can be accessed via ladders or a climbing wall with holes. A suspension bridge with moving steps, a net bridge, a crawl tunnel and a sloping bridge offer a way to move between the platforms. The play centre’s three slides and a fireman’s pole offer a handy way down. For role playing, the centre is equipped with a captain’s helm, binoculars, a porthole, talk tubes, a seat for lying down, a clock learning panel and a Tic-Tac-Toe game. Two fun play corners with bench are hidden beneath two of the platforms, which can be fitted with either a kitchen corner or car dashboard elements. The side panels of the play centre can be switched for various activity walls or thematic printed panels (animals, birds, fish, trees, berries, etc.). The design of the panels will be finalised with the client during ordering.

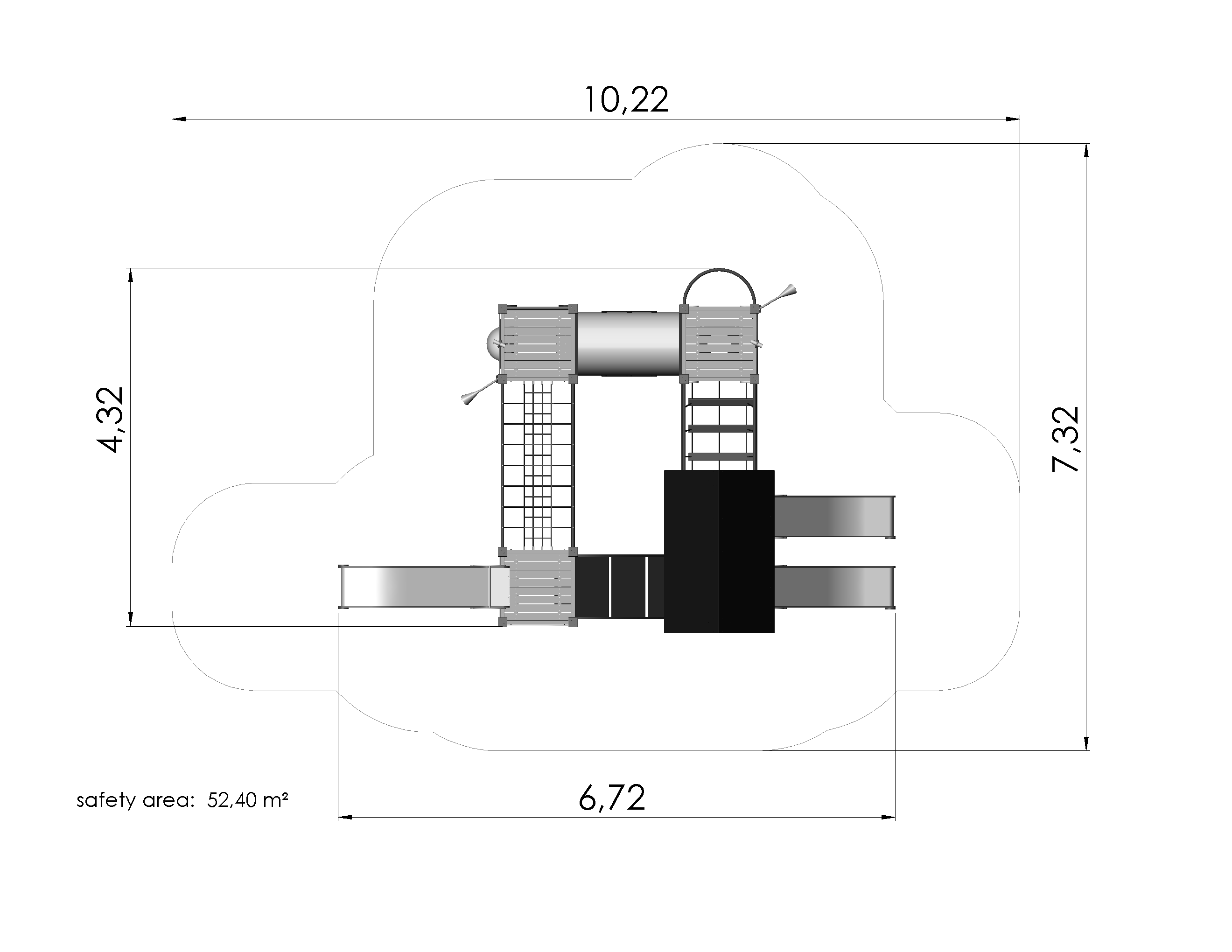

    Safety area

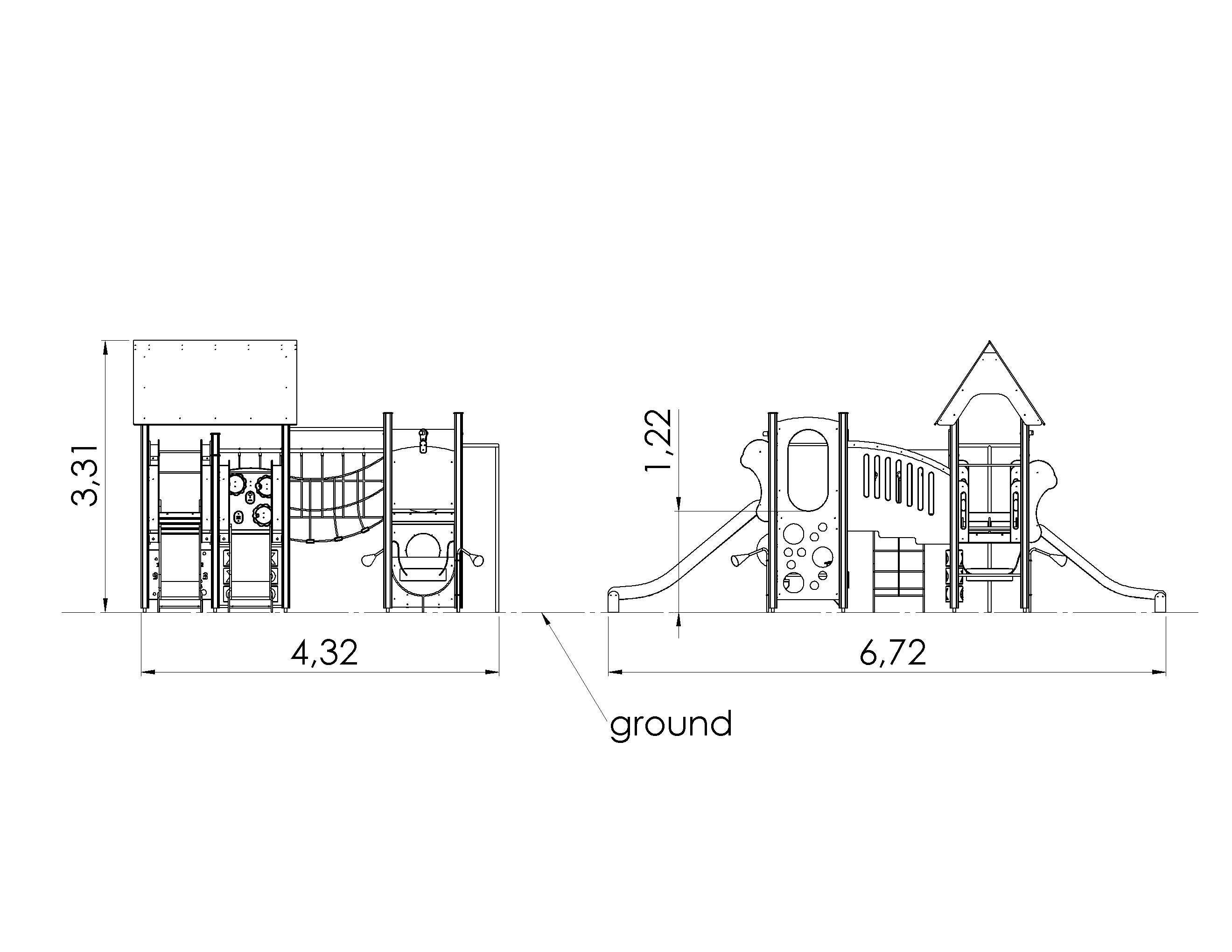

    Side view
