Product code:

SHARK

  • 4 y
  • 2.6 m
  • 5.53 m
  • 5.73 m
  • 4.39 m
  • TUV Logo

Material

+

    Specifications-

    Technical information

    Safety area width8.54 m
    Safety area length9.03 m
    Width of structure5.53 m
    Length of structure5.73 m
    Height of structure4.39 m
    Max. fall height2.6 m
    The product needs a safety surface
    Recommended age of children4+
    For simultaneous use by several children6-8

    Product consists of

    Platforms1 pcs with a height 0.95 m
    Platforms1 pcs with a height 1.55 m
    Slides1 pcs with a height 1.55 m
    Climbing walls2 pcs
    Climbing nets2 pcs
    Ladders2 pcs
    Posts6 pcs
    Panels/Plates2 pcs
    Grips for hands and/or feet10 pcs
    Tubes5 pcs

    Product description

    The product’s painted profile posts made of laminated timber are concreted into the ground using hot-galvanized metal tubular fittings.

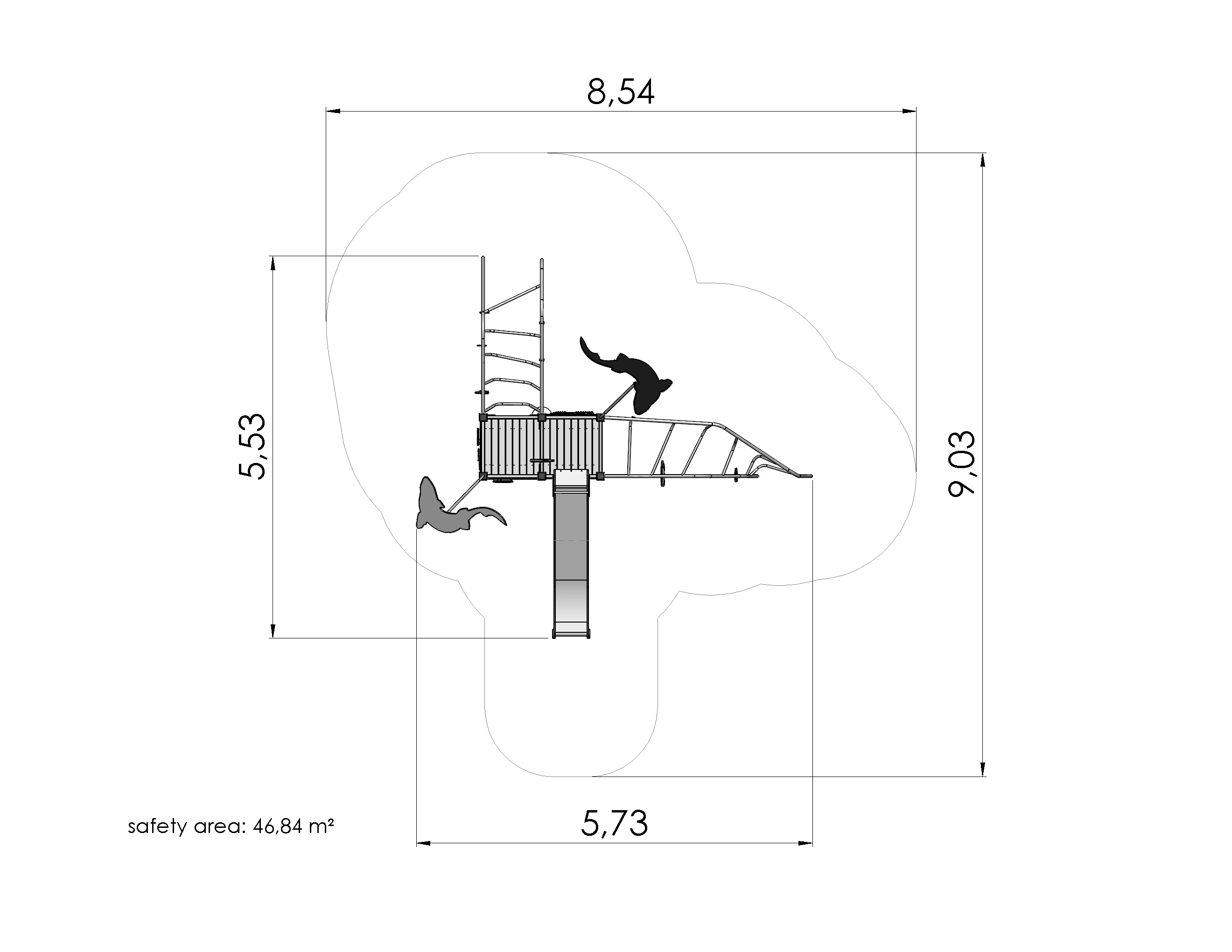

    Safety area

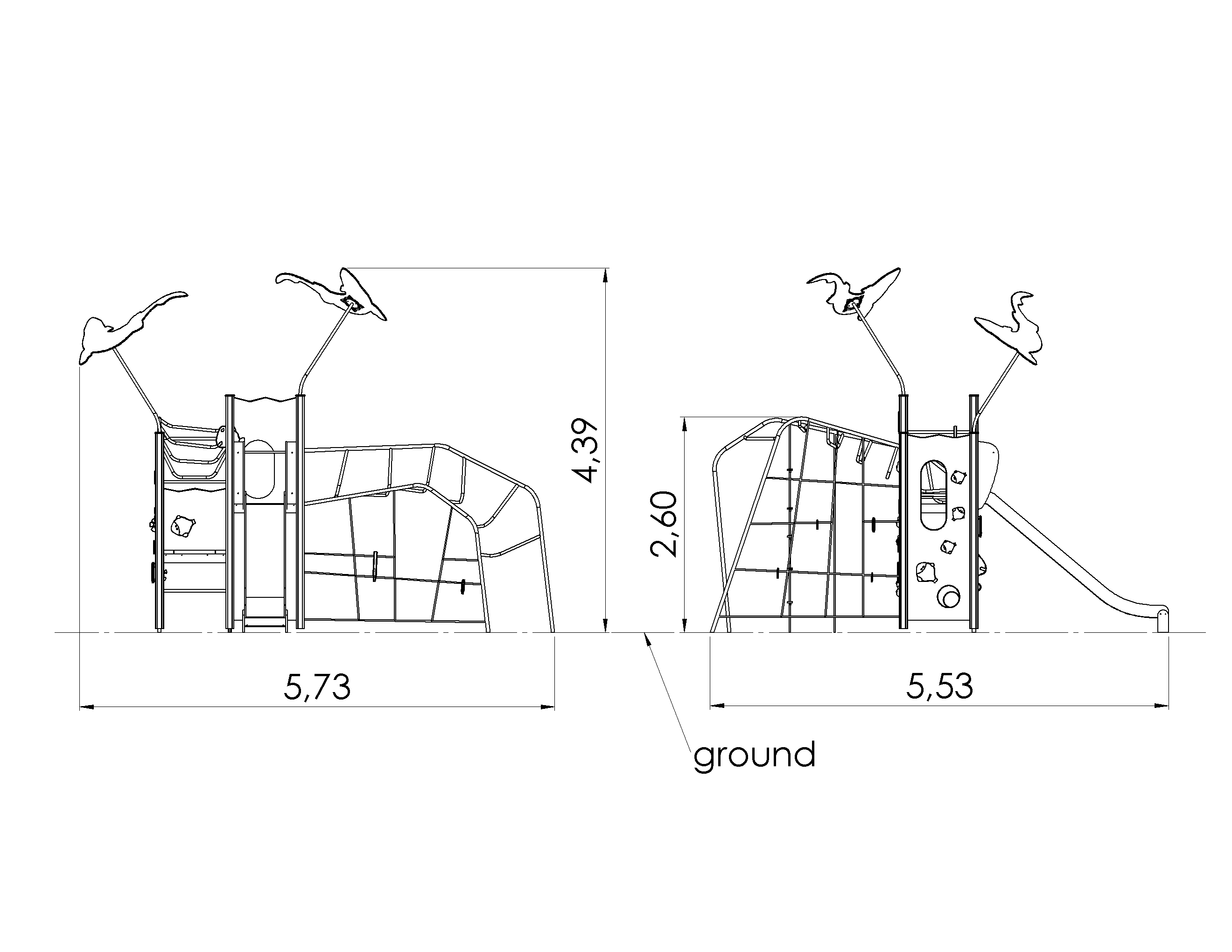

    Side view
