3D Planner
Home / Products / Series / TRIBUTE TO WILDLIFE / Slide CASTOR

Product code:

Slide CASTOR

  • 1 y
  • 0.37 m
  • 0.59 m
  • 3.31 m
  • 1.68 m
  • TUV Logo
+

    Specifications-

    Technical information

    Safety area width3.58 m
    Safety area length6.97 m
    Width of structure0.59 m
    Length of structure3.31 m
    Height of structure1.68 m
    Max. fall height0.37 m
    The product needs a safety surface
    Recommended age of children1+
    For simultaneous use by several children1-5

    Product consists of

    Slides1 pcs with a height 0.95 m

    Product description

    Slide for a slope with a platform CASTOR that is shaped like a beaver, provides engaging activities and joy with a 0,95 metres high slide.
    The side panels and tunnel are made of HDPE. The balancing platform/seat is made of painted timber boards. Fixing accessories are made of stainless steel. Product’s ground fixings are made of hot-dip galvanized metal and as standard solution it is concreted into the ground.

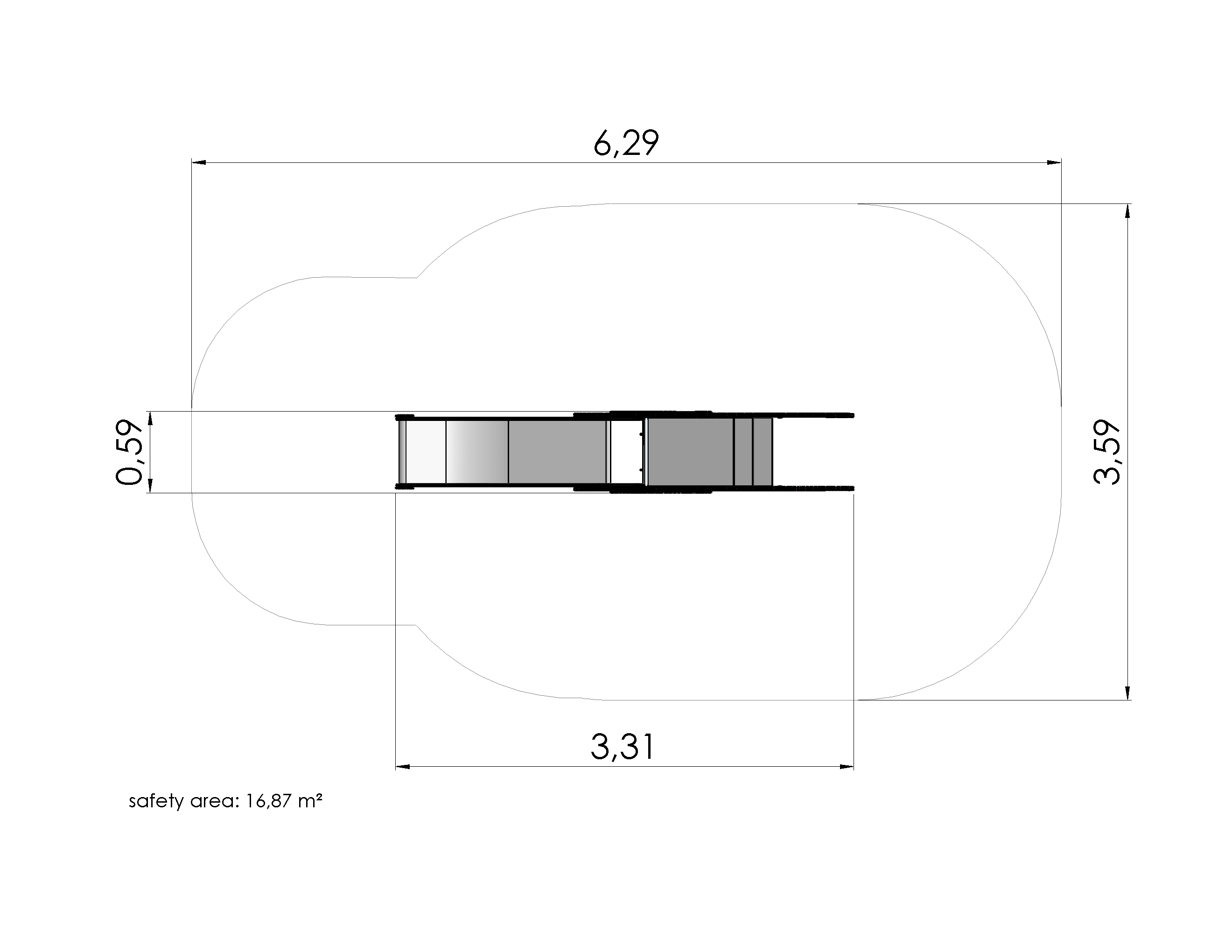

    Safety area

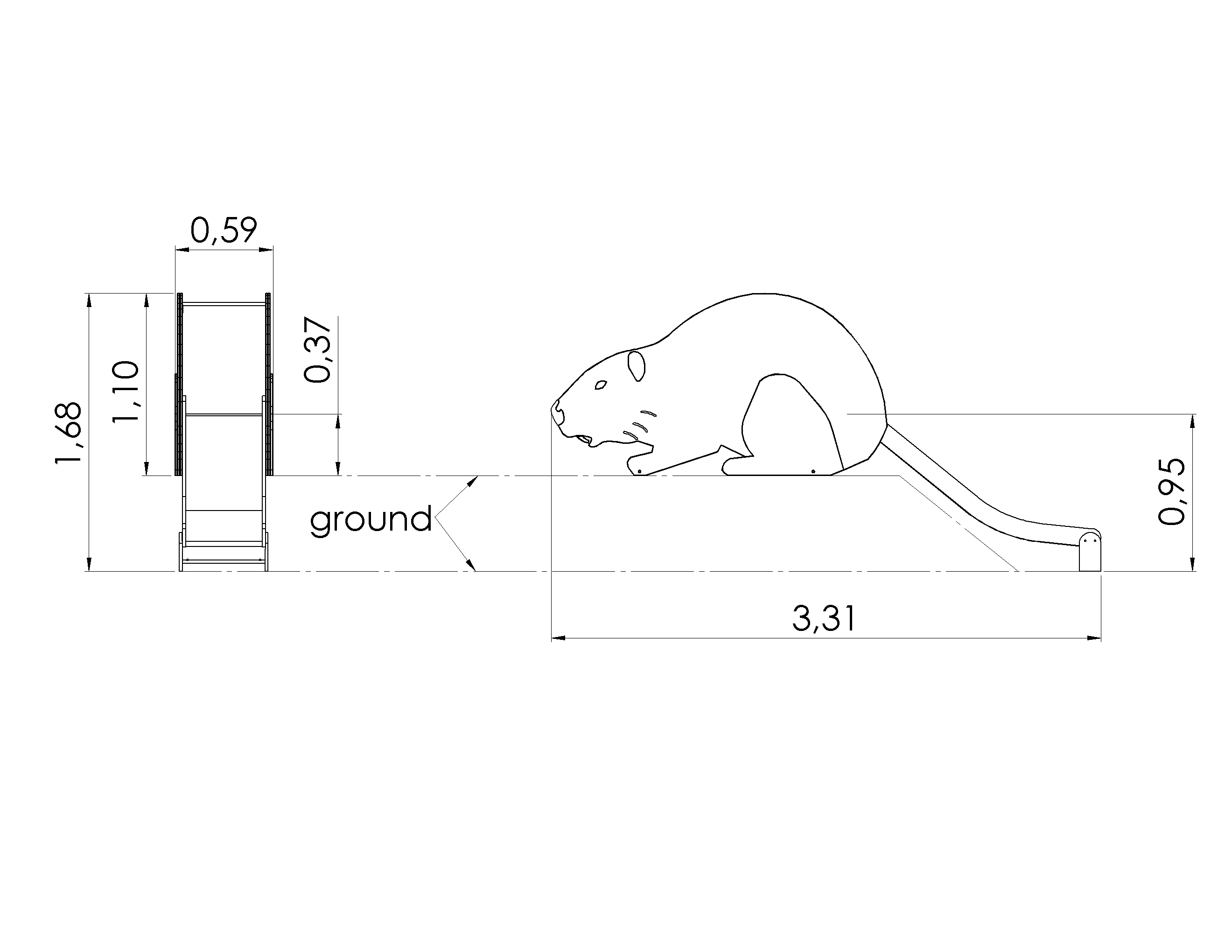

    Side view

    Downloads+

    Material+

    Installation info+

    Creating a world of fun
