Product code:

Spring swing JEEP

  • 2 y
  • 0.73 m
  • 1.07 m
  • 1.96 m
  • 1.47 m
  • TUV Logo

Colour options

+

    Specifications-

    Technical information

    Safety area width3.47 m
    Safety area length4.36 m
    Width of structure1.07 m
    Length of structure1.96 m
    Height of structure1.47 m
    Max. fall height0.73 m
    Recommended age of children2+
    For simultaneous use by several children1-4

    Product description

    The fun and unique JEEP playcar on springs features two driver seats, two passenger seats, a steering wheel, two gear shifts, two turnable dashboard gauges, and movable front blinker lights, movable electric charging plug openings. There is also a play winch in the front.
    Material:
    The springs are made of galvanized and powder coated steel. All panels are made from 15mm HDPE plastic. The roof barsare made from stainless steel. Platform has two layers – lower layer is made of waterproof plywood and top layer of HDPE. Product’s ground fixings are made of hot-dip galvanized metal and as standard solution it is concreted into the ground.

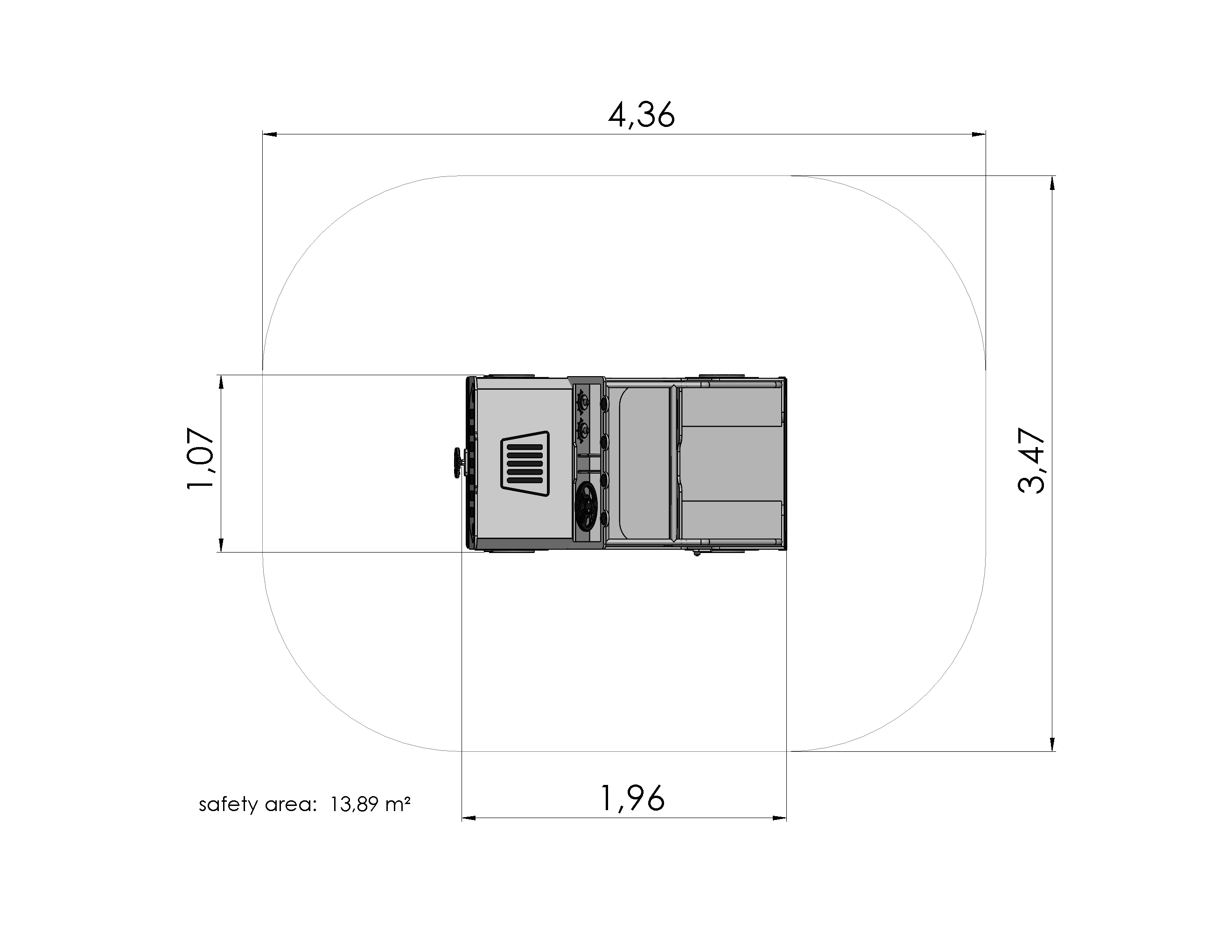

    Safety area

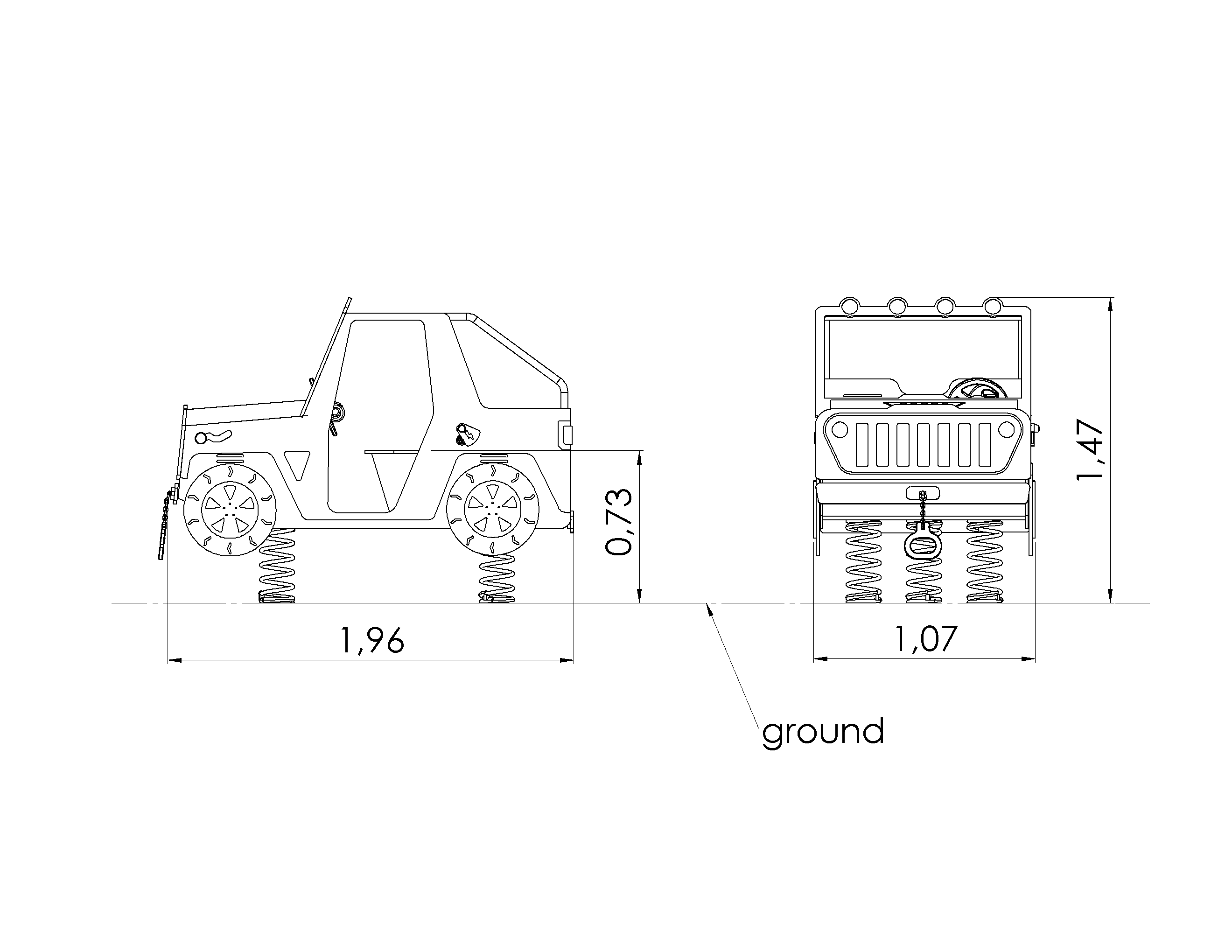

    Side view
