Home / Products / Sport and fitness / URBAN series / URBAN

Product code:

URBAN

  • 8 y
  • 2.8 m
  • 2.38 m
  • 2.82 m
  • 2.8 m
  • TUV Logo
+

    Specifications-

    Technical information

    Safety area width7.11 m
    Safety area length7.26 m
    Width of structure2.38 m
    Length of structure2.82 m
    Height of structure2.8 m
    Max. fall height2.8 m
    Recommended age of children8+
    For simultaneous use by several children1+

    Product description

    Stainless steel tubes, strips, platforms and weatherproof textured wear-resistant plywood walls imitating concrete look – the strong look of the URBAN series products is created by high-quality materials that ensure resistance to weather and vandalism. The URBAN theme series can be assembled into a powerful town but each attraction is also challenging on their own.Materials
    Edge profile: stainless steel
    Inner frame: hot galvanised steel
    Platforms: hot galvanised steel frame with stainless steel plating
    Panels: weatherproof textured grey plywood with thick, wear-resistant phenolic coating and concrete imitation
    Climbing stones: high quality polyresin with metal washer inserted
    Tubes, ladders, parallel sliding bars: stainless steel
    Fixings: stainless steel.

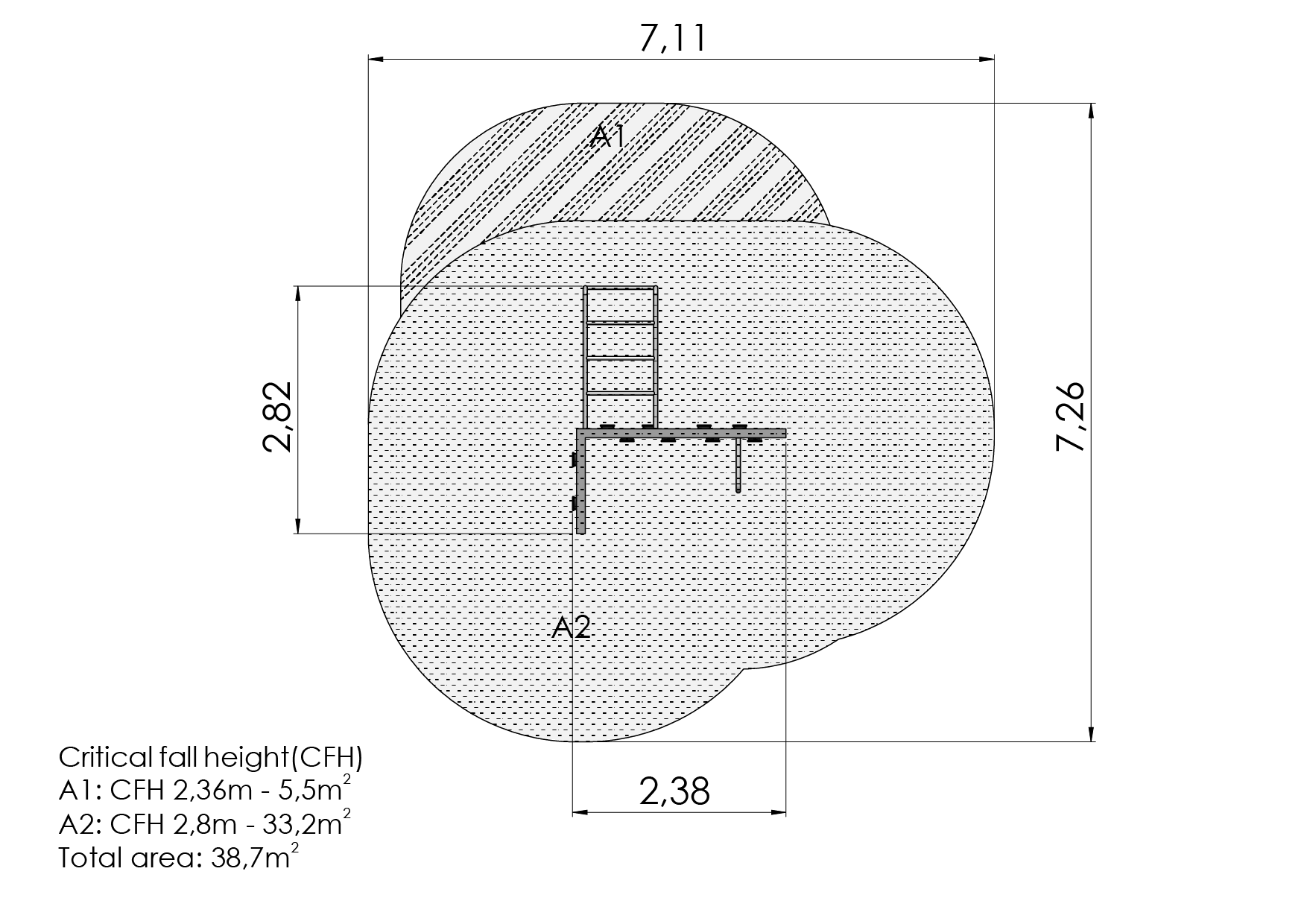

    Safety area

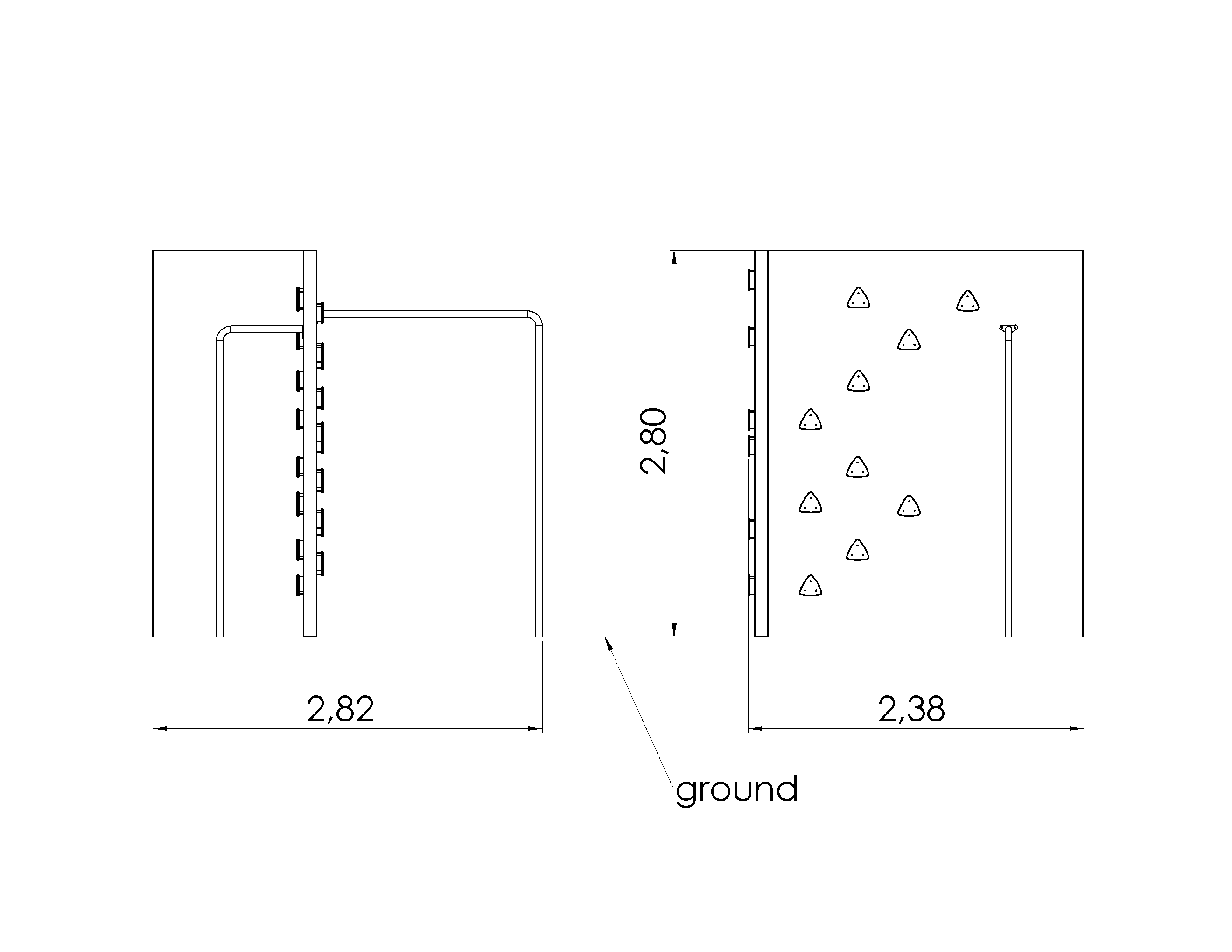

    Side view
