Home / Products / Outdoor furniture / Agility / Jumping obstacle

Product code:

Jumping obstacle

  • 0.15 m
  • 2.45 m
  • 1.2 m
  • TUV Logo
+

    Specifications-

    Technical information

    Width of structure0.15 m
    Length of structure2.45 m
    Height of structure1.2 m
    Recommended age of children0+

    Product description

    The jumping obstacle is made of painted and/or impregnated wood. The width of the bar’s jumping area is 120 cm. The top post is made of wood, which can be placed at three different heights: 45 cm, 55 cm and 65 cm. The bar is attached to the structure by a chain. The diameter of the bars is 5 cm and the bars are painted in at least 3 sections. The heights of the obstacle’s side sections are clearly distinguishable from the highest jump height. The height of the wing's inner vertical post is 1,2 m and the width of the wing is 40 cm. The product is concreted into the ground. Agility products help to develop cooperation between the dog and the owner, and - in addition to sports grounds and fields - are also ideal for the home garden.

    Safety area

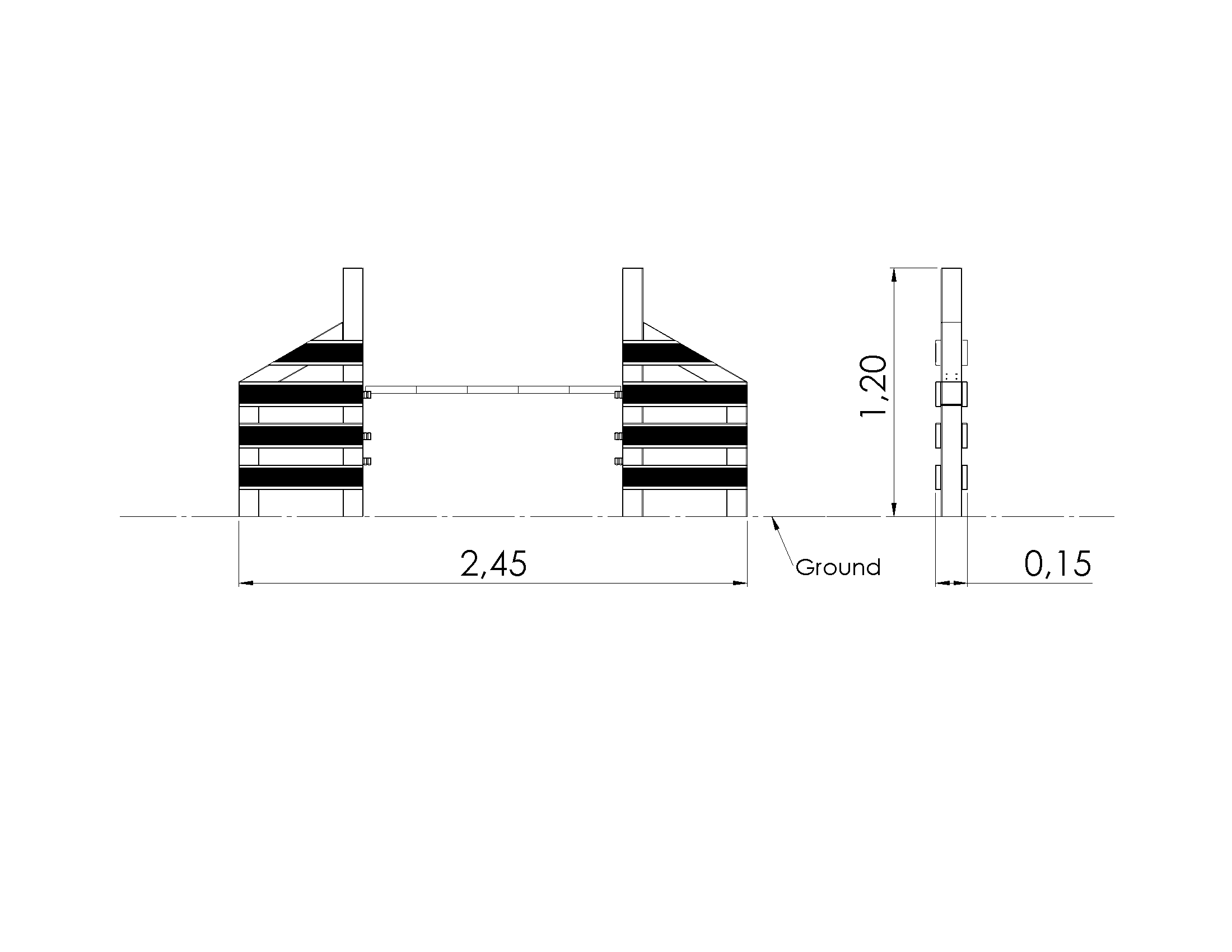

    Side view

    Downloads+

    Installation info+
