Product code: LM102 FORP PE

Play Centre JOHANNA

  • 1 y
  • 1.55 m
  • 4.94 m
  • 5.15 m
  • 3.82 m
  • TUV Logo

Colour options

Material

+

Specifications-

Technical information

Safety area width8.19 m
Safety area length8.44 m
Width of structure4.94 m
Length of structure5.15 m
Height of structure3.82 m
Max. fall height1.55 m
The product needs a safety surface
Recommended age of children1+
For simultaneous use by several children8-16

Product consists of

Platforms1 pcs with a height 0.95 m
Plastic covered laminated wood
Platforms1 pcs with a height 1.2 m
Plastic covered laminated wood
Platforms1 pcs with a height 1.55 m
Plastic covered laminated wood
Roofs2 pcs
HDPE plastic
Slides1 pcs with a height 0.95 m
Stainless-steel, HDPE plastic sides
Slides1 pcs with a height 1.55 m
Stainless-steel, HDPE plastic sides
Climbing nets1 pcs
16 mm six-strand PES cover braided steel ropes
Bridges1 pcs
Stairs with handrails1 pcs
Plastic covered laminated wood
Posts10 pcs
Laminated wood
Panels/Plates9 pcs
HDPE plastic
Tubes6 pcs
Galvanized and powder coated steel

Product description

A play centre with three different level platforms, two of which have roofs, stairs with handrails, a net suspension bridge and a net climbing slope. The side panels of the play centre can be switched for various activity walls or thematic printed panels (animals, birds, fish, trees, berries, etc.). The design of the panels will be finalised with the client during ordering.

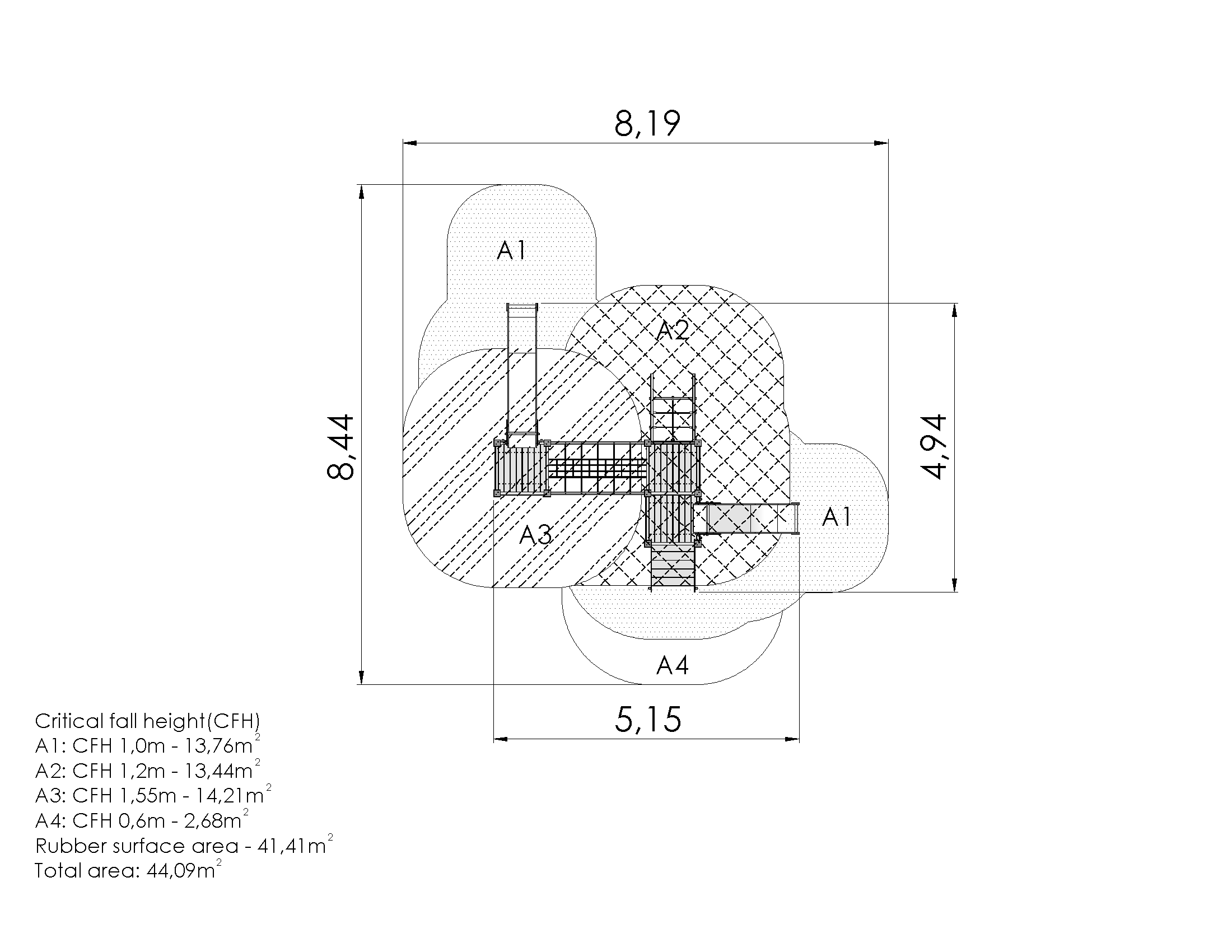

Safety area

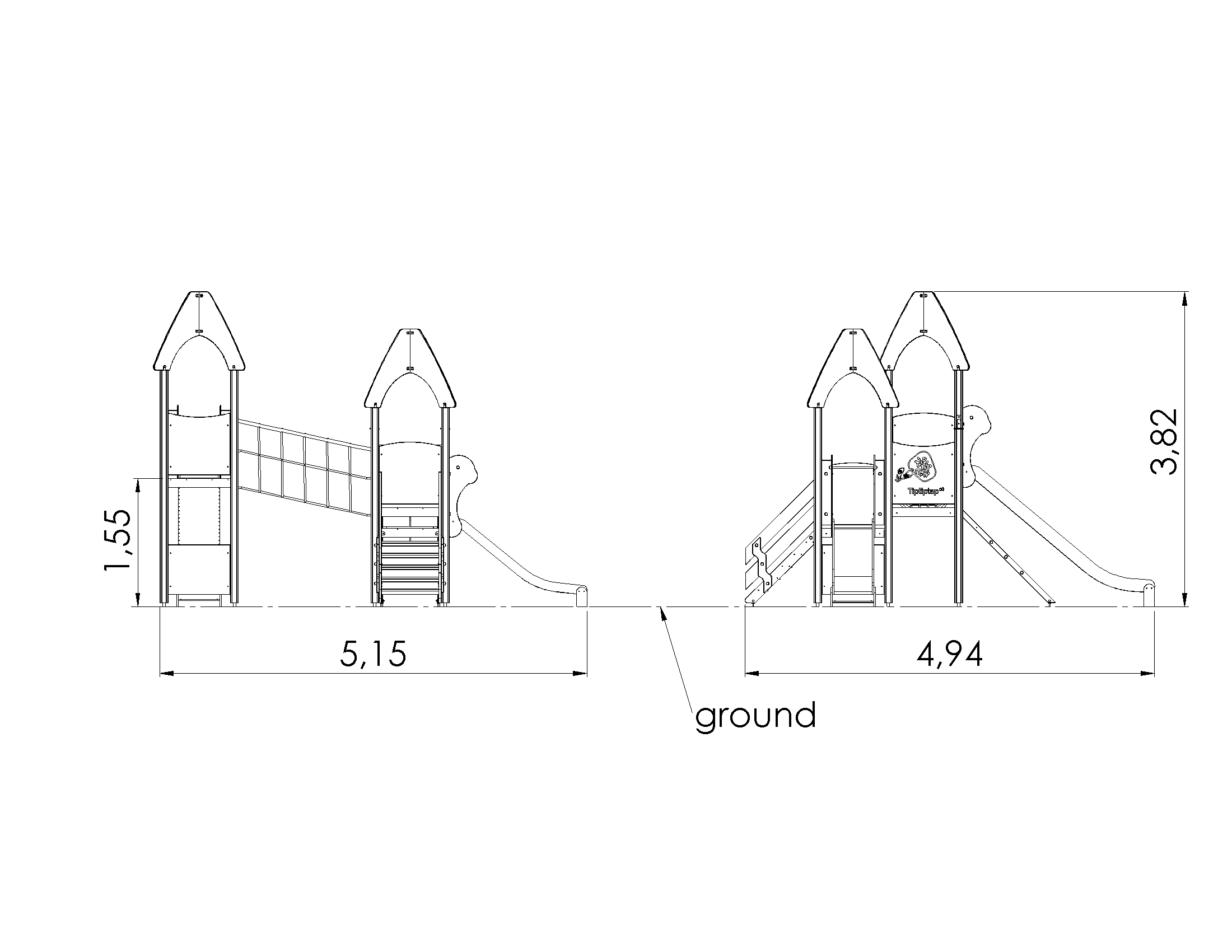

Side view
