Product code: LM215-1 FORP PE

Play Centre LINDSAY

  • 4 y
  • 1.92 m
  • 2.91 m
  • 5.05 m
  • 2.91 m
  • TUV Logo

Colour options

Material

+

Specifications-

Technical information

Safety area width6.67 m
Safety area length8.31 m
Width of structure2.91 m
Length of structure5.05 m
Height of structure2.91 m
Max. fall height1.92 m
Recommended age of children4+
For simultaneous use by several children6-12

Product consists of

Platforms1 pcs with a height 1.2 m
Plastic covered laminated wood
Platforms1 pcs with a height 0.95 m
Plastic covered laminated wood
Roofs1 pcs
HDPE plastic
Slides1 pcs with a height 1.2 m
Stainless-steel, HDPE plastic sides
Climbing walls1 pcs
HDPE plastic
Climbing nets1 pcs
16 mm six-strand PES cover braided steel ropes
Bridges1 pcs
Slopes1 pcs
Plywood
Play corners1 pcs
Plastic and wood
Activity panels1 pcs
HDPE plastic
Posts12 pcs
Laminated wood
Panels/Plates7 pcs
HDPE plastic
Tubes6 pcs
Galvanized and powder coated steel

Product description

This play centre with two platforms, a net bridge, a climbing wall and play elements is suitable for various developing activities. The centre can be accessed via a rock climbing slope, the two platforms are connected by a net bridge with handrails. The centre comes equipped with a Tic-Tac-Toe game and hidden beneath the roofed platform is a fun play corner with a bench, which can be fitted with either kitchen or car dashboard elements. The side panels of the play centre can be switched for various activity walls or thematic printed panels (animals, birds, fish, trees, berries, etc.). The design of the panels will be finalised with the client during ordering.

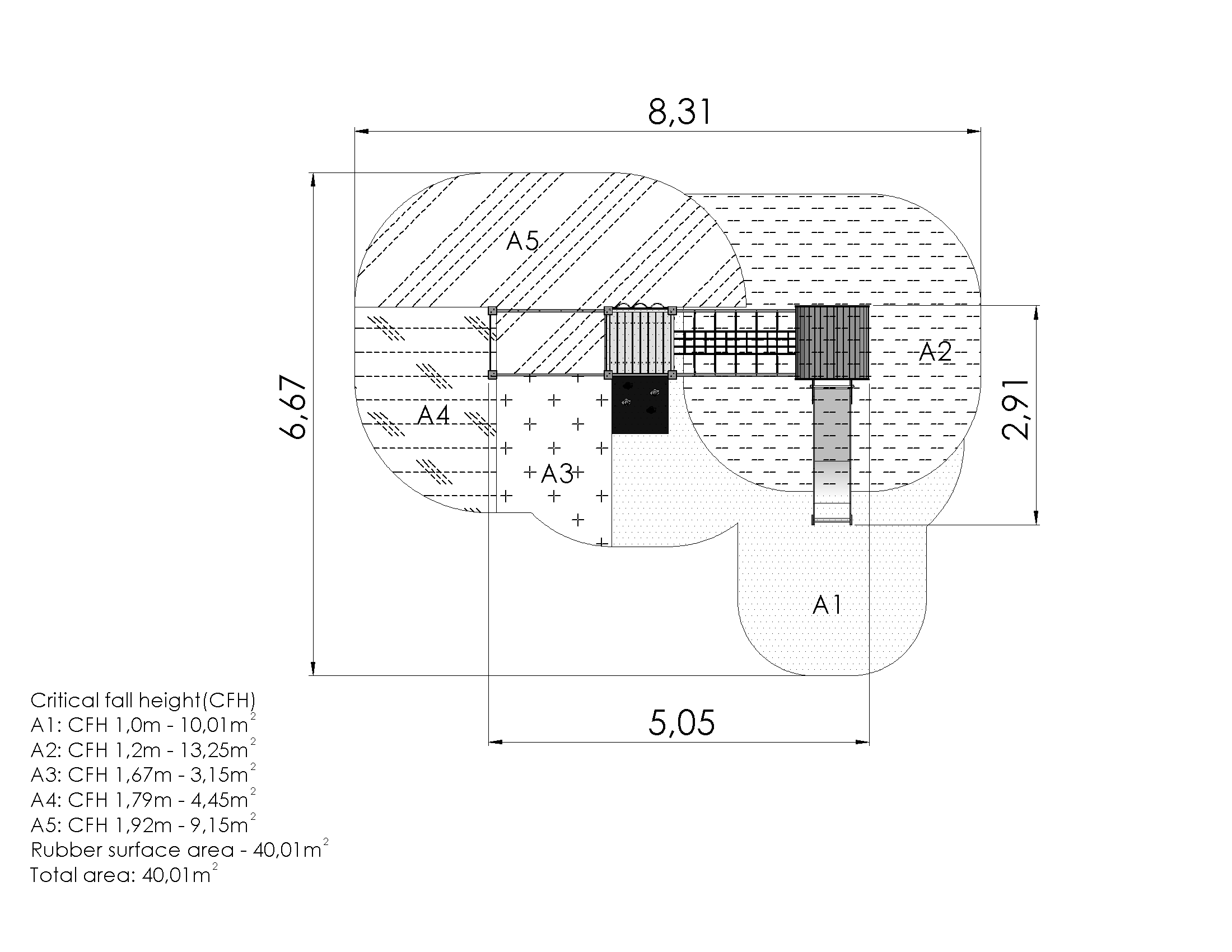

Safety area

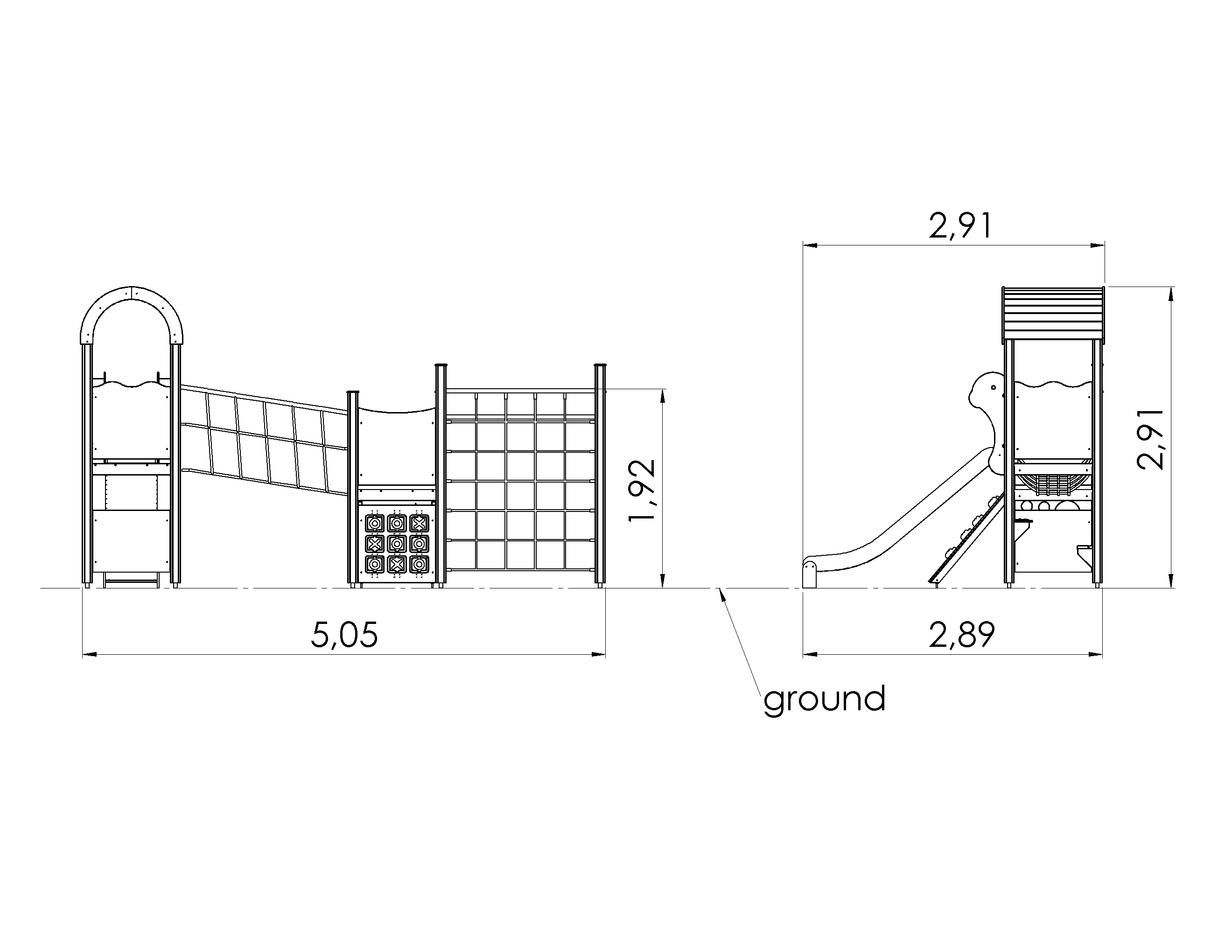

Side view

Downloads+

Material+

Installation info+
