Home / Products / Playgrounds / Spring swings and see-saws / See-saw LADYBUG

Product code:

See-saw LADYBUG

  • 2 y
  • 0.8 m
  • 0.52 m
  • 3.03 m
  • 1.07 m
  • TUV Logo

Material

+

    Specifications-

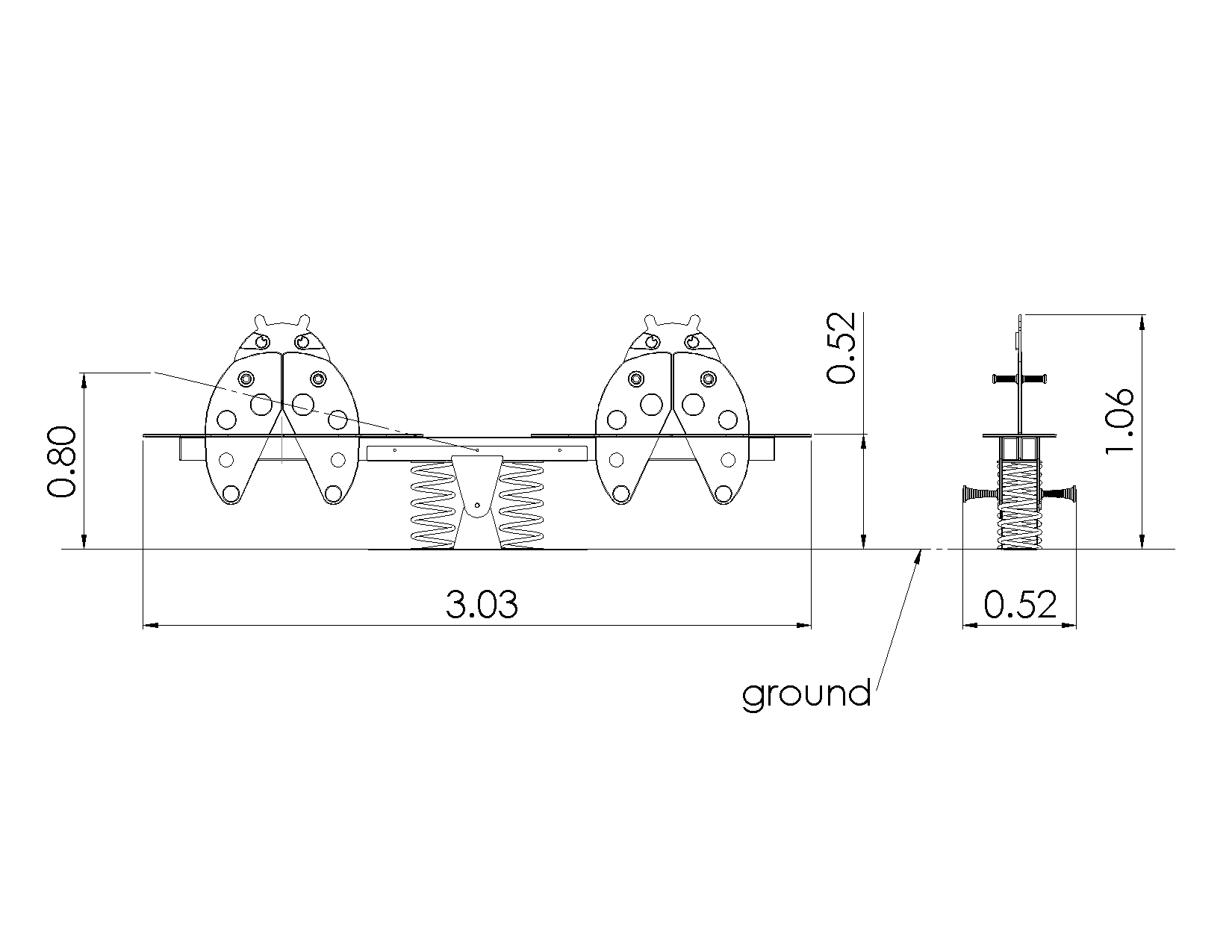

    Technical information

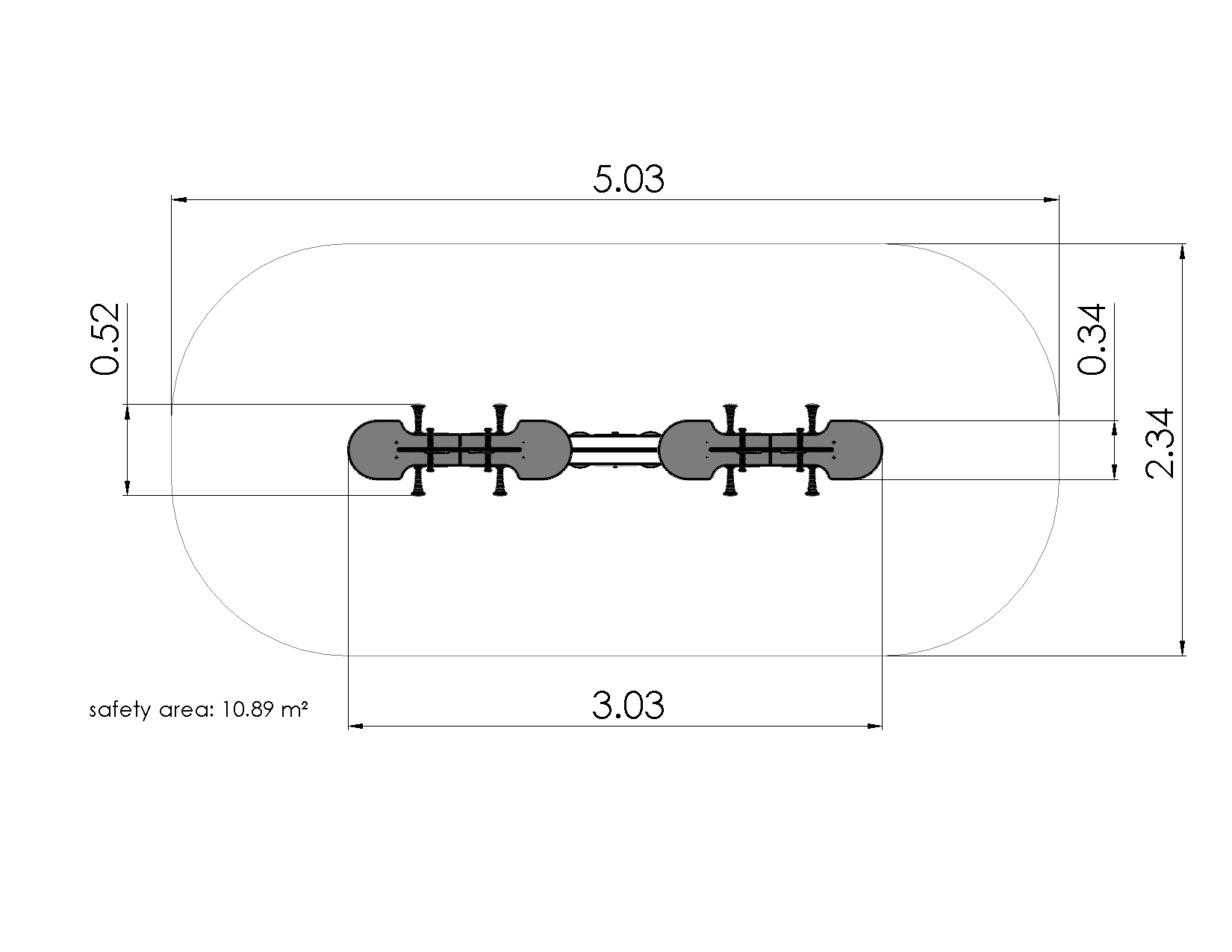

    Safety area width5.03 m
    Safety area length2.52 m
    Width of structure0.52 m
    Length of structure3.03 m
    Height of structure1.07 m
    Max. fall height0.8 m
    Recommended age of children2+

    Product consists of

    Beams2 pcs
    Springs2 pcs
    Grips for hands and/or feet8 pcs

    Product description

    Seesaw LADYBUG is designed so that if one end goes up, the other goes down. The seesaw has four seats, but thanks to the springs it can also be used for swinging in pairs or even alone. Seats are equipped with handles and leg supports.
    The beam of see-saw is made of 2 painted laminated timber beams. Mechanism and springs are made from galvanized and powder coated steel. Ladybugs are made of 15 mm HDPE. Product's ground fixings are made of hot-dip galvanized metal and as standard solution it is concreted into the ground.

    Downloads+

    Material+

    Installation info+

    Creating a world of fun
