Product code:

Water slide WHALE

  • 4 y
  • 2.15 m
  • 3.51 m
  • 7.77 m
  • 5.58 m
  • TUV Logo
+

    Specifications-

    Technical information

    Safety area width6.51 m
    Safety area length10.9 m
    Width of structure3.51 m
    Length of structure7.77 m
    Height of structure5.58 m
    Max. fall height2.15 m
    The product needs a safety surface
    Recommended age of children4+
    For simultaneous use by several children1-10

    Product consists of

    Slides1 pcs with a height 2.15 m

    Product description

    Fun and unique slide for water, WHALE, where the whale is holding it’s tail up, is designed so that you can climb on top on the 2.15m platform and slide into the water below. Thanks to the climbing stones on the side, the kids can also climb on the side panels also.
    Material:
    Product frame, support beams, fixing accessories and metal details are made of seawater proof stainless steel. All side panels are made of 15 mm HDPE. The slide has got a stainless steel sliding surface, which can be replaced by HDPE in case requested. As a standard solution, the product is secured to the ground using a large metal frame, which is not anchored to the ground. The construction can be removed from the water with crane during winter when the sea freezes.

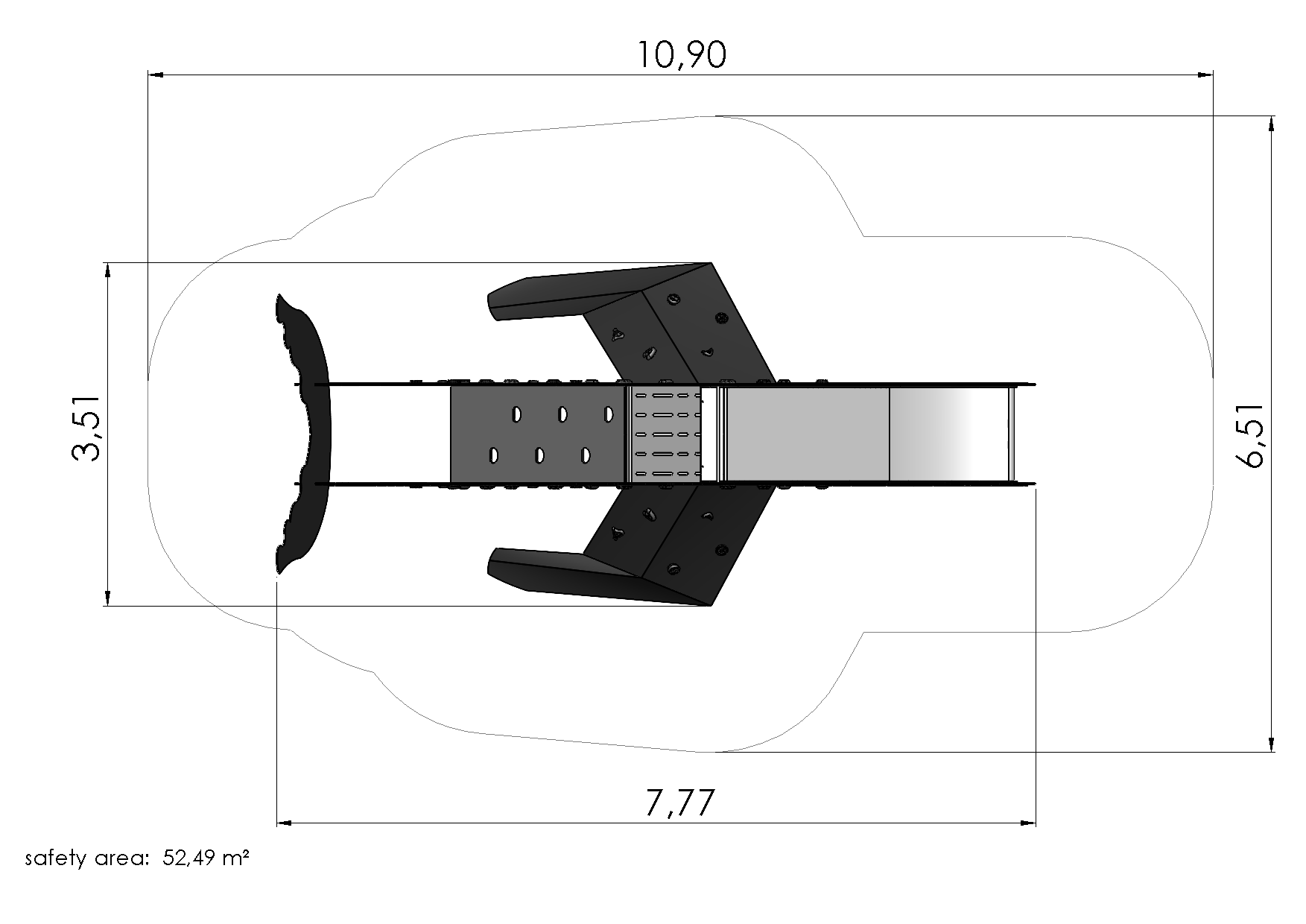

    Safety area

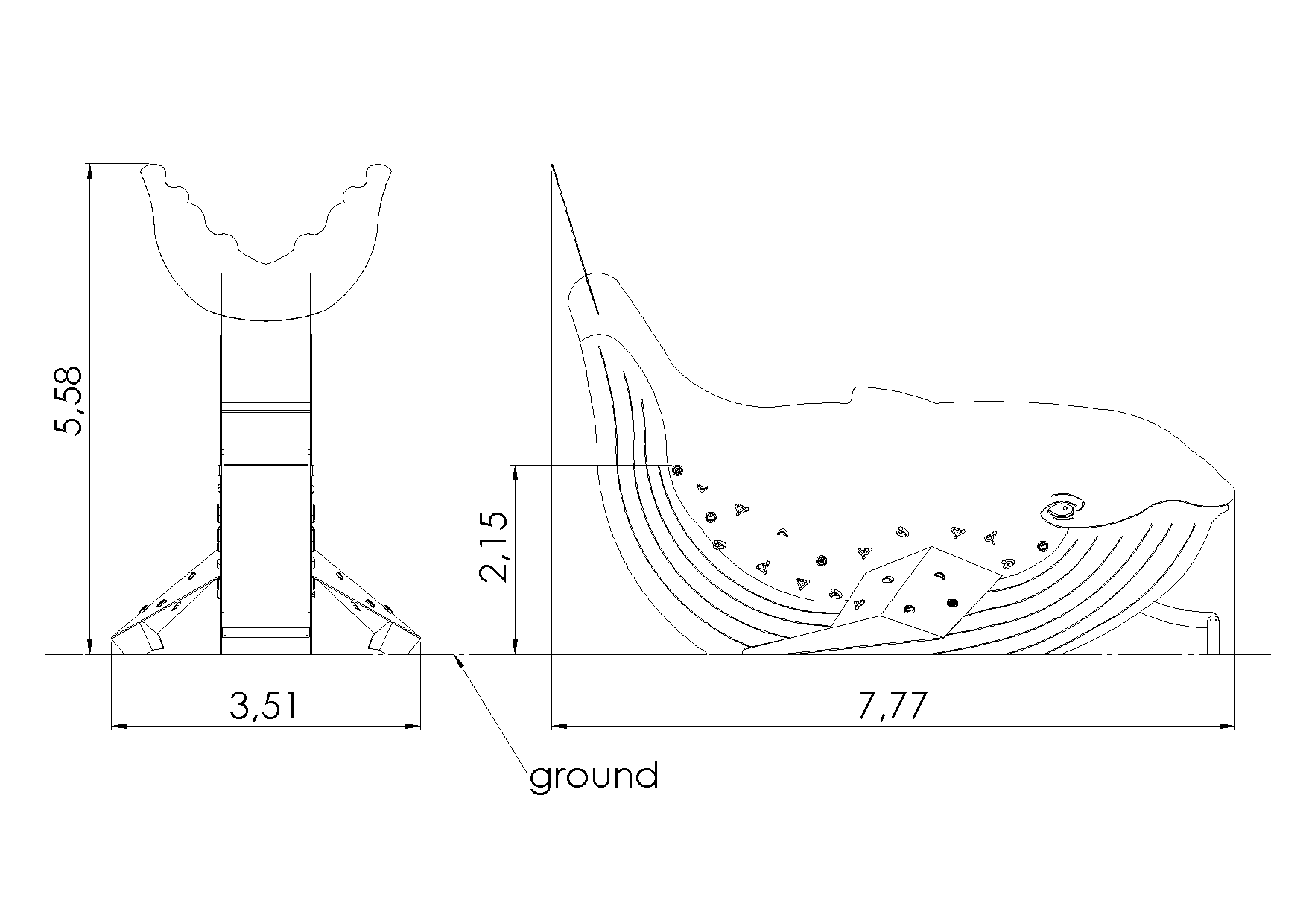

    Side view
